Hose Nipple ISO-KF
Universal hose nipple ISO-KF for vacuum systems. PRECESS provides various kinds of flange for pipeline connection of your system.
Home > Products > Hose Nipple > Hose Nipple ISO-KF

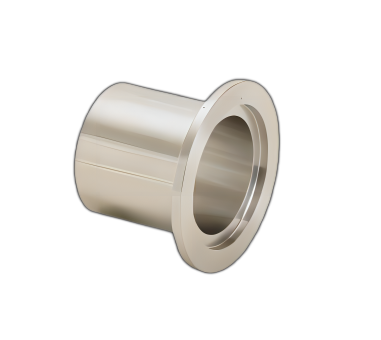

Hose Nipple ISO-KF

Hosenipple flanges allow the mating of one type of flange system to another. All of our flange adapters are manufactured from 304 series stainless steel tubing and flanges.

Key features of the Hose Nipple ISO-KF
Features:
Available in 304L stainless steel or aluminum 6061-T6 (standard tees only)
Benefits:
Common lengths and tube diameters listed; contact us with your specific requirements
TECHNICAL DATA
Downloads
SIZES
 DN16 to 50mm
Flange
 Hose Nipple ISO-KF
MATERIAL
SS / Aluminum
LEAK RATE
 < 1 × 10-9 mbar l/s
PRESSURE RANGE
 1 × 10-9 mbar to 2 bar (abs)

Hose Nipple ISO-KF
241.82KB PDF
Download
SPECIFY STANDARD PRODUCT
Get to the product details to specify your requirements to get a quote or to get a specific CAD data download.
Part No.
Size
Description
φA
φB
C
D
Manual
Price
Stock

CHNN16
NW16
Hose Nipple ISO-KF
30
19.05
32
20
CHNN25
NW25
Hose Nipple ISO-KF
40
25.4
38
26
CHNN40
NW40
Hose Nipple ISO-KF
55
38.1
50
38.2
CHNN50
NW50
Hose Nipple ISO-KF
75
50.8
55
41
CUSTOMIZED SOLUTION
Specify your customized solution.
If you have your specification already at hand, please upload it and submit it to us. We are happy to send you a quote.
Upload your specification
Maximum upload size: 15 MB, only JPG, PNG, CAD, PDF files are acceptable.
