Adaptor, ISO-F to CF-F
Universal adaptor, ISO-F to CF-F for vacuum systems. PRECESS provides various kinds of flange for pipeline connection of your system.
Home > Products > Adaptor > Adaptor, ISO-F to CF-F

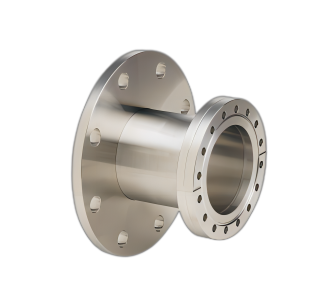

Adaptor, ISO-F to CF-F

Adapter flanges allow the mating of one type of flange system to another. All of our flange adapters are manufactured from 304 series stainless steel tubing and flanges.

Mixing flange types using adapters is possible but not recommended unless necessary to match existing components or fittings. However, using one flange type for chamber-mounted components and another type for foreline components is common practice.

Key features of the Adaptor, ISO-F to CF-F
Features:
Available in 304L stainless steel or aluminum 6061-T6 (standard tees only)
Benefits:
Common lengths and tube diameters listed; contact us with your specific requirements
TECHNICAL DATA
Downloads
SIZES
 DN63 to 200mm
Flange
ISO-F to CF-F
MATERIAL
 Stainless steel
LEAK RATE
 < 1 × 10-9 mbar l/s
PRESSURE RANGE
1 × 10-9 mbar to 2 bar (abs)

Adaptor, ISO-F to CF-F
607.67KB PDF
Download
SPECIFY STANDARD PRODUCT
Get to the product details to specify your requirements to get a quote or to get a specific CAD data download.
Part No.
Size
Description
φA
φB
φC
Manual
Price
Stock

CAFC6345
ISOF63,CF4.5
Adaptor, ISO-F to CF-F
130
113.5
63.5
CAFC8006
ISOF80,CF6
Adaptor, ISO-F to CF-F
145
152
76.3
CAFC10006
ISOF100CF,6
Adaptor, ISO-F to CF-F
165
152
101.6
CAFC16008
ISOF160CF8
Adaptor, ISO-F to CF-F
225
203
152.4
CAFC20010
ISOF200,CF10
Adaptor, ISO-F to CF-F
285
254
216.3
CUSTOMIZED SOLUTION
Specify your customized solution.
If you have your specification already at hand, please upload it and submit it to us. We are happy to send you a quote.
Upload your specification
Maximum upload size: 15 MB, only JPG, PNG, CAD, PDF files are acceptable.
