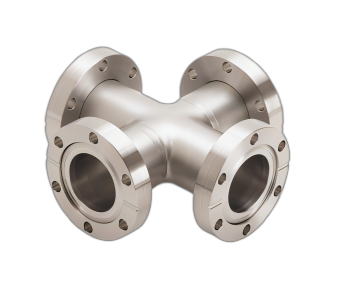

Cross, CF-F(Tap)

We fabricate these CF cross for UHV systems from 304L stainless steel tubing and knife-edge flanges. The CF flange is the most widely used for high vacuum and UHV applications. Many gauges, instruments, accessories and feedthroughs are available on this flange system.

Key features of the Cross, CF-F(Tap)
Features:
One rotatable flange on each axis (crosses only)
Through-hole bolt hole flanges (crosses only)
Benefits:
Tapped sides (cubes only)
TECHNICAL DATA
Downloads
SIZES
 DN63 to 320mm
Flange
 CF-F
MATERIAL
 Stainless steel
LEAK RATE
 < 1 × 10-10 mbar l/s
PRESSURE RANGE
1 × 10-10 mbar to 2 bar (abs)

Cross, CF-F(Tap)
819.03KB PDF
Download
SPECIFY STANDARD PRODUCT
Get to the product details to specify your requirements to get a quote or to get a specific CAD data download.
Part No.
Size
Description
φA
φB
C
D
Manual
Price
Stock

CROC13TF
CF1.33-4FAY-FIX
Cross, CF-F(Tap)
34
19.05
32.8
4.3
CROC13TR
CF1.33-4FAY-ROTA
Cross, CF-F(Tap)
34
19.05
32.8
4.3
CRO5C13TF
CF1.33-5FAY-FIX
Cross, CF-F(Tap)
34
19.05
51.9
4.3
CRO5C13TR
CF1.33-5FAY-ROTA
Cross, CF-F(Tap)
34
19.05
51.9
4.3
CRO6C13TF
CF1.33-6FAY-FIX
Cross, CF-F(Tap)
34
19.05
51.9
4.3
CRO6C13TR
CF1.33-6FAY-ROTA
Cross, CF-F(Tap)
34
19.05
51.9
4.3
CROC21TF
CF2.125-4FAY-FIX
Cross, CF-F(Tap)
53.8
25.4
43.9
8.9
CROC21TR
CF2.125-4FAY-ROTA
Cross, CF-F(Tap)
53.8
25.4
40.9
5.9
CRO5C21TF
CF2.125-5FAY-FIX
Cross, CF-F(Tap)
53.8
25.4
56.5
8.9
CRO5C21TR
CF2.125-5FAY-ROTA
Cross, CF-F(Tap)
53.8
25.4
53.5
5.9
CRO6C21TF
CF2.125-6FAY-FIX
Cross, CF-F(Tap)
53.8
25.4
56.5
8.9
CRO6C21TR
CF2.125-6FAY-ROTA
Cross, CF-F(Tap)
53.8
25.4
53.5
5.9
CROC27TF
CF2.75-4FAY-FIX
Cross, CF-F(Tap)
69.5
38.1
55.7
5.7
CROC27TR
CF2.75-4FAY-ROTA
Cross, CF-F(Tap)
69.5
38.1
55.7
5.7
CRO5C27TF
CF2.74-5FAY-FIX
Cross, CF-F(Tap)
69.5
38.1
62.9
5.7
CRO5C27TR
CF2.75-5FAY-ROTA
Cross, CF-F(Tap)
69.5
38.1
62.9
5.7
CRO6C27TF
CRO6C27TF CF2.75-6FAY-FIX Cross, CF-F(Tap)
Cross, CF-F(Tap)
69.5
38.1
62.9
5.7
CRO6C27TR
CF2.75-6FAY-ROTA
Cross, CF-F(Tap)
69.5
38.1
62.9
5.7
CROC33TF
CF3.375-4FAY-FIX
Cross, CF-F(Tap)
86
50.8
68
8
CROC33TR
CF3.375-4FAY-ROTA
Cross, CF-F(Tap)
86
50.8
67.5
7.5
CRO5C33TF
CF3.375-5FAY-FIX
Cross, CF-F(Tap)
86
50.8
84.2
8
CRO5C33TR
CF3.375-5FAY-ROTA
Cross, CF-F(Tap)
86
50.8
83.7
7.5
CRO6C33TF
CF3.375-6FAY-FIX
Cross, CF-F(Tap)
86
50.8
84.2
8
CRO6C33TR
CF3.375-6FAY-ROTA
Cross, CF-F(Tap)
86
50.8
83.7
7.5
CROC45TF
CF4.5-4FAY-FIX
Cross, CF-F(Tap)
113.5
63.5
88.5
9.5
CROC45TR
CF4.5-4FAY-ROTA
Cross, CF-F(Tap)
113.5
63.5
89.7
10.7
CRO5C45TF
CF4.5-5FAY-FIX
Cross, CF-F(Tap)
113.5
63.5
85.7
9.5
CRO5C45TR
CF4.5-5FAY-ROTA
Cross, CF-F(Tap)
113.5
63.5
86.9
10.7
CRO6C45TF
CF4.5-6FAY-FIX
Cross, CF-F(Tap)
113.5
63.5
85.7
9.5
CRO6C45TR
CF4.5-6FAY-ROTA
Cross, CF-F(Tap)
113.5
63.5
86.9
10.7
CROC06TF
CF6-4FAY-FIX
Cross, CF-F(Tap)
152
101.6
140
10
CROC06TR
CF6-4FAY-ROTA
Cross, CF-F(Tap)
152
101.6
141.3
11.3
CRO5C06TF
CF6-5FAY-FIX
Cross, CF-F(Tap)
152
101.6
108.4
10
CRO5C06TR
CF6-5FAY-ROTA
Cross, CF-F(Tap)
152
101.6
109.7
11.3
CRO6C06TF
CF6-6FAY-FIX
Cross, CF-F(Tap)
152
101.6
108.4
10
CRO6C06TR
CF6-6FAY-ROTA
Cross, CF-F(Tap)
152
101.6
109.7
11.3
