Cross, CF-F(Hole)
Universal cross, CF-F(Hole) for vacuum systems. PRECESS provides various kinds of flange for pipeline connection of your system.
Home > Products > Cross > Cross, CF-F(Hole)

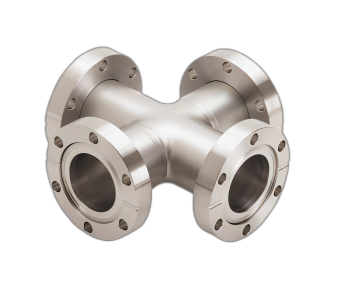

Cross, CF-F(Hole)

We fabricate these CF cross for UHV systems from 304L stainless steel tubing and knife-edge flanges. The CF flange is the most widely used for high vacuum and UHV applications. Many gauges, instruments, accessories and feedthroughs are available on this flange system.

Key features of the Cross, CF-F(Hole)
Features:
One rotatable flange on each axis (crosses only)
Through-hole bolt hole flanges (crosses only)
Benefits:
Tapped sides (cubes only)
TECHNICAL DATA
Downloads
SIZES
DN63 to 320mm
Flange
 CF-F
MATERIAL
 Stainless steel
LEAK RATE
 < 1 × 10-10 mbar l/s
PRESSURE RANGE
 1 × 10-10 mbar to 2 bar (abs)

Cross, CF-F(Hole)
822.41KB PDF
Download
SPECIFY STANDARD PRODUCT
Get to the product details to specify your requirements to get a quote or to get a specific CAD data download.
Part No.
Size
Description
φA
φB
C
D
Manual
Price
Stock

CROC13HF
CF1.33-4WAY-FIX
Cross, CF-F(Hole)
34
19.05
32.8
4.3
CROC13HR
CF1.33-4WAY-ROTA
Cross, CF-F(Hole)
34
19.05
32.8
4.3
CRO5C13HF
CF1.33-5WAY-FIX
Cross, CF-F(Hole)
34
19.05
51.9
4.3
CRO5C13HR
CF1.33-5WAY-ROTA
Cross, CF-F(Hole)
34
19.05
51.9
4.3
CRO6C13HF
CF1.33-6WAY-FIX
Cross, CF-F(Hole)
34
19.05
51.9
4.3
CRO6C13HR
CF1.33-6WAY-ROTA
Cross, CF-F(Hole)
34
19.05
51.9
4.3
CROC21HF
CF2.125-4WAY-FIX
Cross, CF-F(Hole)
53.8
25.4
43.9
8.9
CROC21HR
CF2.125-4WAY-ROTA
Cross, CF-F(Hole)
53.8
25.4
40.9
5.9
CRO5C21HF
CF2.125-5WAY-FIX
Cross, CF-F(Hole)
53.8
25.4
56.5
8.9
CRO5C21HR
CF2.125-5WAY-ROTA
Cross, CF-F(Hole)
53.8
25.4
53.5
5.9
CRO6C21HF
CF2.125-6WAY-FIX
Cross, CF-F(Hole)
53.8
25.4
56.5
8.9
CRO6C21HR
CF2.125-6WAY-ROTA
Cross, CF-F(Hole)
53.8
25.4
53.5
5.9
CROC27HF
CF2.75-4WAY-FIX
Cross, CF-F(Hole)
69.5
38.1
55.7
5.7
CROC27HR
CF2.75-4WAY-ROTA
Cross, CF-F(Hole)
69.5
38.1
55.7
5.7
CRO5C27HF
CF2.75-5WAY-FIX
Cross, CF-F(Hole)
69.5 5.7
38.1
62.9
5.7
CRO5C27HR
CF2.75-5WAY-ROTA
Cross, CF-F(Hole)
69.5
38.1
62.9
5.7
CRO6C27HF
CF2.75-6WAY-FIX
Cross, CF-F(Hole)
69.5
38.1
62.9
5.7
CRO6C27HR
CF2.75-6WAY-ROTA
Cross, CF-F(Hole)
69.5
38.1
62.9
5.7
CROC33HF
CF3.375-4WAY-FIX
Cross, CF-F(Hole)
86
50.8
68
8
CROC33HR
CF3.375-4WAY-ROTA
Cross, CF-F(Hole)
86
50.8
67.5
7.5
CRO5C33HF
CF3.375-5WAY-FIX
Cross, CF-F(Hole)
86
50.8
84.2
8
CRO5C33HR
CF3.375-5WAY-ROTA
Cross, CF-F(Hole)
86
50.8
83.7
7.5
CRO6C33HF
CF3.375-6WAY-FIX
Cross, CF-F(Hole)
86
50.8
84.2
8
CRO6C33HR
CF3.375-6WAY-ROTA
Cross, CF-F(Hole)
113.5
50.8
83.7
7.5
CROC45HF
CF4.5-4WAY-FIX
Cross, CF-F(Hole)
113.5
63.5
88.5
9.5
CROC45HR
CF4.5-4WAY-ROTA
Cross, CF-F(Hole)
113.5
63.5
89.7
10.7
CRO5C45HF
CF4.5-5WAY-FIX
Cross, CF-F(Hole)
113.5
63.5
85.7
9.5
CRO5C45HR
CF4.5-5WAY-ROTA
Cross, CF-F(Hole)
113.5
63.5
86.9
10.7
CRO6C45HF
CF4.5-6WAY-FIX
Cross, CF-F(Hole)
113.5
63.5
85.7
9.5
CRO6C45HR
CF4.5-6WAY-ROTA
Cross, CF-F(Hole)
152
63.5
86.9
10.7
CROC06HF
CF6-6WAY-FIX
Cross, CF-F(Hole)
152
101.6
140
10
CROC06HR
CF6-4DAY-ROTA
Cross, CF-F(Hole)
152
101.6
141.3
11.3
CRO5C06HF
CF6-5WAY-FIX
Cross, CF-F(Hole)
152
101.6
108.4
10
CRO5C06HR
CF6-5WAY-ROTA
Cross, CF-F(Hole)
152
101.6
109.7
11.3
CRO6C06HF
CF6-6WAY-FIX
Cross, CF-F(Hole)
152
101.6
108.4
10
CRO6C06HR
CF6-6WAY-ROTA
Cross, CF-F(Hole)
152
101.6
109.7
11.3
