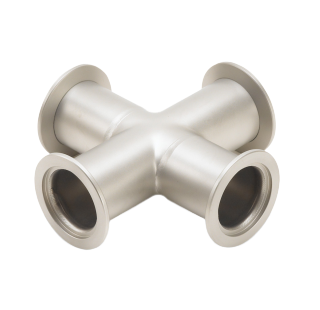

Cross, ISO-KF

We fabricate these KF (QF) nipples (spools) for HV systems from tubing and KF flanges. The KF (QF) flange is used for through- or foreline vacuum plumbing and for simple HV chamber ports.

Key features of the Cross, ISO-KF
Features:
Available in 304L stainless steel or aluminum 6061-T6 (standard tees only)
Reducer tees adapt two different flange sizes
Benefits:
Common lengths and tube diameters listed; contact us with your specific requirements
TECHNICAL DATA
Downloads
SIZES
 DN16 to 100mm
Flange
 ISO-KF
MATERIAL
 SS / Aluminum
LEAK RATE
 < 1 × 10-9 mbar l/s
PRESSURE RANGE
1 × 10-9 mbar to 2 bar (abs)

Cross, ISO-KF
820.43KB PDF
Download
SPECIFY STANDARD PRODUCT
Get to the product details to specify your requirements to get a quote or to get a specific CAD data download.
Part No.
Size
Description
φA
φB
C
D
Manual
Price
Stock

CRON016
NW16-4WAY
Cross, ISO-KF
30
19.05
32
3.5
CRON016
NW16-5WAY
Cross, ISO-KF
30
19.05
51.1
3.5
CRON016
NW16-6WAY
Cross, ISO-KF
30
19.05
51.1
3.5
CRON025
NW25-4WAY
Cross, ISO-KF
40
25.4
38.5
3.5
CRON025
NW25-5WAY
Cross, ISO-KF
40
25.4
51.1
3.5
CRON025
NW25-6WAY
Cross, ISO-KF
40
25.4
51.1
3.5
CRON040
NW40-4WAY
Cross, ISO-KF
55
38.1
53.5
3.5
CRON040
NW40-5WAY
Cross, ISO-KF
55
38.1
60.7
3.5
CRON040
NW40-6WAY
Cross, ISO-KF
55
38.1
60.7
3.5
CRON050
NW50-4WAY
Cross, ISO-KF
75
50.8
63.5
3.5
CRON050
NW50-5WAY
Cross, ISO-KF
75
50.8
79.7
3.5
CRON050
NW50-6WAY
Cross, ISO-KF
75
50.8
79.7
3.5
CRON063
NW63-4WAY
Cross, ISO-KF
95
63.5
86
7
CRON063
NW63-5WAY
Cross, ISO-KF
95
63.5
83.2
7
CRON063
NW63-6WAY
Cross, ISO-KF
95
63.5
83.2
7
CRON080
NW80-4WAY
Cross, ISO-KF
114
76.3
89
7
CRON080
NW80-5WAY
Cross, ISO-KF
114
76.3
89.6
7
CRON080
NW80-6WAY
Cross, ISO-KF
114
76.3
89.6
7
CRON100
NW100-4WAY
Cross, ISO-KF
134
101.6
137
7
CRON100
NW100-5WAY
Cross, ISO-KF
134
101.6
105.4
7
CRON100
NW100-6WAY
Cross, ISO-KF
134
101.6
105.4
7
