Reducing Tee, CF-F
Universal reducing Tee, CF-F for vacuum systems. PRECESS provides various kinds of flange for pipeline connection of your system.
Home > Products > Reducing Tee > Reducing Tee, CF-F

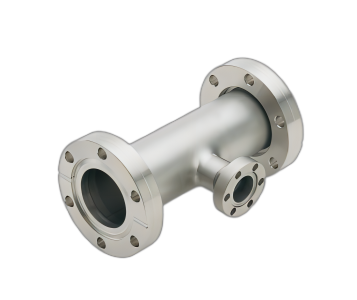

Reducing Tee, CF-F

We fabricate these CF tees for UHV systems from 304L stainless steel tubing and knife-edge flanges. The CF flange is the most widely used for high vacuum and UHV applications. Many gauges, instruments, accessories and feedthroughs are available on this flange system.

Key features of the Reducing Tee, CF-F
Features:
Available in 304L stainless steel or aluminum 6061-T6 (standard tees only)
One fixed and two rotatable (one on each axis) flanges
Benefits:
Through-hole bolt hole flanges
TECHNICAL DATA
Downloads
SIZES
 DN63 to 250mm
Flange
 CF-F
MATERIAL
 Stainless steel
LEAK RATE
 < 1 × 10-10 mbar l/s
PRESSURE RANGE
 1 × 10-10 mbar to 2 bar (abs)

Reducing Tee, CF-F
B PDF
Download
SPECIFY STANDARD PRODUCT
Get to the product details to specify your requirements to get a quote or to get a specific CAD data download.
Part No.
Size
Description
φA
φB
C
c
D
d
Manual/Price/Stock

CTEC2127HF
CF2.125,2.75[3H-3F]
Reducing Tee, CF-F
69.5
53.8
48.9
40
55.7
50
CTEC2127HR
CF2.125,2.75[3H-3R]
Reducing Tee, CF-F
69.5
53.8
45.9
40
55.7
50
CTEC2127TF
CF2.125,2.75[3T-3F]
Reducing Tee, CF-F
69.5
53.8
48.9
40
55.7
50
CTEC2127TR ]
CF2.125,2.75[2T-2R
Reducing Tee, CF-F
69.5
53.8
45.9
40
55.7
50
CTEC2133HF
CF2.125,3.374[3H-3F]
Reducing Tee, CF-F
86
53.8
56.5
47.6
68
60
CTEC2133HR
CF2.125,3.375[3H-3R]
Reducing Tee, CF-F
86
53.8
53.5
47.6
67.5
60
CTEC2133TF
CF2.125,3.375[3T-3F]
Reducing Tee, CF-F
86
53.8
56.5
47.6
68
60
CTEC2133TR
CF2.125,3.375[3T-3R]
Reducing Tee, CF-F
86
53.8
53.5
47.6
67.5
60
CTEC2145HF
CF2.125,4.5[3H-3F]
Reducing Tee, CF-F
113.5
v
61.2
52.3
88.5
79
CTEC2145HR
CF2.125,4.5[3H-3R]
Reducing Tee, CF-F
113.5
53.8
58.2
52.3
89.7
79
CTEC2145TF
CF2.125,4.5[3T-3F]
Reducing Tee, CF-F
113.5
53.8
61.2
52.3
88.5
79
CTEC2145TR
CF2.125,4.5[3T-3R]
Reducing Tee, CF-F
113.5
53.8
58.2
52.3
89.7
79
CTEC2733HF
CF2.75,3.375[3H-3F]
Reducing Tee, CF-F
86
69.5
64.3
58.6
68
60
CTEC2733HR
CF2.75,3.375[3H-3R]
Reducing Tee, CF-F
86
69.5
64.3
58.6
67.5
60
CTEC2733TF
CF2.75,3.375[Tt-3F]
Reducing Tee, CF-F
86
69.5
64.3
58.6
68
60
CTEC2733TR
CF2.75,3.375[Tt-3R]
Reducing Tee, CF-F
86
68.5
64.3
58.6
67.5
60
CTEC2745HF
CF2.75,4.5[3H-3F]
Reducing Tee, CF-F
113.5
69.5
69
63.3
88.5
79
CTEC2745HR
CF2.75,4.5[3H-3R]
Reducing Tee, CF-F
113.5
69.5
69
63.3
89.7
79
CTEC2745TF
CF2.75-4.5[3T-3F]
Reducing Tee, CF-F
113.5
69.5
69
63.3
88.5
79
CTEC2745TR
CF2.75,4.5[3T-3R]
Reducing Tee, CF-F
113.5
69.5
69
63.3
89.7
79
CTEC3345HF
CF3.375,4.5[3H-3F]
Reducing Tee, CF-F
113.5
86
77.4
69.3
88.5
79
CTEC3345HR
CF3.375,4.5[3H-3R]
Reducing Tee, CF-F
113.5
86
76.8
69.3
89.7
79
CTEC3345TF
CF3.375,4.5[3T-3F]
Reducing Tee, CF-F
113.5
86
77.3
69.3
88.5
79
CTEC3345TR
CF3.375,4.5[3T-3R]
Reducing Tee, CF-F
113.5
86
76.8
69.3
89.7
79
CTEC3306HF
CF3.375,6[3H-3F]
Reducing Tee, CF-F
152
86
105
97
140
130
CTEC3306HR
CF3.375,6[3H-3R]
Reducing Tee, CF-F
152
86
104.5
97
141.3
130
CTEC3306TF
CF3.375,6[3T-3F]
Reducing Tee, CF-F
152
86
105
97
140
130
CTEC3306TR
CF3.375,6[3T-3R]
Reducing Tee, CF-F
152
86
104.5
97
141.3
130
CTEC4506HF
CF4.56[3H-3F]
Reducing Tee, CF-F
152
113.5
122.5
113
140
130
CTEC4506HR
CF4.5,6[3H-3R]
Reducing Tee, CF-F
152
113.5
123.7
113
141.3
130
CTEC4506TF
CF4.5,6[3T-3F]
Reducing Tee, CF-F
152
113.5
122.5
113
140
130
CTEC4506TR
CF4.5,6[3T-R]
Reducing Tee, CF-F
152
113.5
123.7
113
141.3
130
