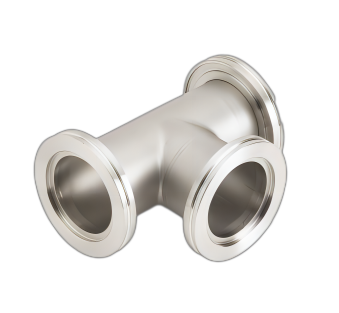

Reducing Tee, ISO-K
Universal reducing tee, ISO-K for vacuum systems. PRECESS provides various kinds of flange for pipeline connection of your system.
Home > Products > Reducing Tee > Reducing Tee, ISO-K
Reducing Tee, ISO-K

We fabricate these KF (QF) nipples (spools) for HV systems from tubing and KF flanges. The KF (QF) flange is used for through- or foreline vacuum plumbing and for simple HV chamber ports.

Key features of the Reducing Tee, ISO-K
Features:
Available in 304L stainless steel or aluminum 6061-T6 (standard tees only)
Reducer tees adapt two different flange sizes
Benefits:
Common lengths and tube diameters listed; contact us with your specific requirements
TECHNICAL DATA
Downloads
SIZES
DN63 to 100mm
Flange
ISO-K
MATERIAL
SS / Aluminum
LEAK RATE
 < 1 × 10-9 mbar l/s
PRESSURE RANGE
 1 × 10-9 mbar to 2 bar (abs)

Reducing Tee, ISO-K
451.33KB PDF
Download
SPECIFY STANDARD PRODUCT
Get to the product details to specify your requirements to get a quote or to get a specific CAD data download.
Part No.
Size
Description
φA
φB
C
c
D
d
Manual/Price/Stock

CTEK6380
ISOK63,80
Reducing Tee, ISO-K
110
95
97
90
89
82
CTEK63100
ISOK63,100
Reducing Tee, ISO-K
130
95
120
113
137
130
CTEK80100
ISOK80,100
Reducing Tee, ISO-K
130
110
123
116
137
130
CUSTOMIZED SOLUTION
Specify your customized solution.
If you have your specification already at hand, please upload it and submit it to us. We are happy to send you a quote.
Upload your specification
Maximum upload size: 15 MB, only JPG, PNG, CAD, PDF files are acceptable.
