Reducing Tee, ISO-KF
Universal reducing tee, ISO-KF for vacuum systems. PRECESS provides various kinds of flange for pipeline connection of your system.
Home > Products > Reducing Tee > Reducing Tee, ISO-KF

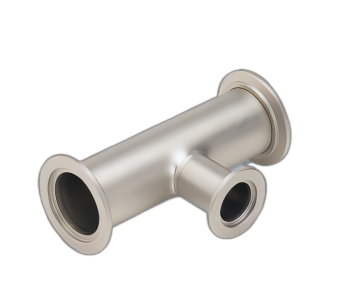

Reducing Tee, ISO-KF

We fabricate these KF (QF) nipples (spools) for HV systems from tubing and KF flanges. The KF (QF) flange is used for through- or foreline vacuum plumbing and for simple HV chamber ports.

Key features of the Reducing Tee, ISO-KF
Features:
Available in 304L stainless steel or aluminum 6061-T6 (standard tees only)
Reducer tees adapt two different flange sizes
Benefits:
Common lengths and tube diameters listed; contact us with your specific requirements
TECHNICAL DATA
Downloads
SIZES
DN16 to 100mm
Flange
ISO-KF
MATERIAL
 SS / Aluminum
LEAK RATE
< 1 × 10-9 mbar l/s
PRESSURE RANGE
 1 × 10-9 mbar to 2 bar (abs)

Reducing Tee, ISO-KF
451.33KB PDF
Download
SPECIFY STANDARD PRODUCT
Get to the product details to specify your requirements to get a quote or to get a specific CAD data download.
Part No.
Size
Description
φA
φB
C
c
D
d
Manual

CTEN2540
NW25,40
Reducing Tee, ISO-KF
55
40
43.5
40
53.5
50
CTEN2550
NW25,50
Reducing Tee, ISO-KF
75
40
51.1
47.6
63.5
60
CTEN2563
NW25,63
Reducing Tee, ISO-KF
95
40
55.8
52.3
86
79
CTEN4050
NW40,50
Reducing Tee, ISO-KF
75
55
62.1
58.6
63.5
60
CTEN4063
NW40,63
Reducing Tee, ISO-KF
95
55
66.8
63.3
86
79
CTEN4080
NW40,80
Reducing Tee, ISO-KF
114
55
73.5
70
89
82
CTEN5063
NW50,63
Reducing Tee, ISO-KF
95
75
72.8
69.3
86
79
CTEN5080
NW50,80
Reducing Tee, ISO-KF
114
75
79.5
76
89
82
CTEN6380
NW63,80
Reducing Tee, ISO-KF
114
95
97
90
89
82
CTEN50100
NW50,100
Reducing Tee, ISO-KF
134
75
100.5
97
137
130
CTEN63100
NW63,100
Reducing Tee, ISO-KF
134
95
120
113
137
130
CTEN80100
NW80,100
Reducing Tee, ISO-KF
134
114
123
116
137
130
