Tee, CF-F(2Hole, 2Fix)
Universal tee, CF-F for vacuum systems. PRECESS provides various kinds of flange for pipeline connection of your system.
Home > Products > Tee > Tee, CF-F(2Hole, 2Fix)
Tee, CF-F(2Hole, 2Fix)

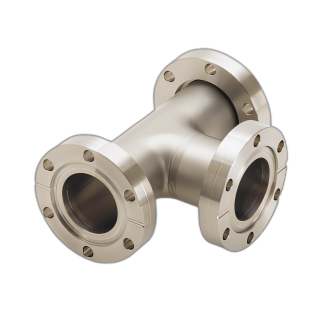

We fabricate these CF tees for UHV systems from 304L stainless steel tubing and knife-edge flanges. The CF flange is the most widely used for high vacuum and UHV applications. Many gauges, instruments, accessories and feedthroughs are available on this flange system.

Key features of the Tee, CF-F(2Hole, 2Fix)
Features:
Available in 304L stainless steel or aluminum 6061-T6 (standard tees only)
One fixed and two rotatable (one on each axis) flanges
Benefits:
Through-hole bolt hole flanges
TECHNICAL DATA
Downloads
SIZES
 DN63 to 250mm
Flange
CF-F
MATERIAL
Stainless steel
LEAK RATE
< 1 × 10-10 mbar l/s
PRESSURE RANGE
1 × 10-10 mbar to 2 bar (abs)

Tee, CF-F(2Hole, 2Fix)
577.31KB PDF
Download
SPECIFY STANDARD PRODUCT
Get to the product details to specify your requirements to get a quote or to get a specific CAD data download.
Part No.
vSize
Description
φA
φB
C
D
d
Manual
Price/Stock

CTEC13HF
CF1.33[3H-3F]
Tee, CF-F
34
19.05
1.2
32.8
28.5
CTEC13HR
CF1.33[3H-3R]
Tee, CF-F
34
19.05
1.2
32.8
28.5
CTEC13TF
CF1.33[3T-3F]
Tee, CF-F
34
19.05
1.2
32.8
28.5
CTECTR
CF1.33[3T-3R]
Tee, CF-F
34
19.05
1.2
32.8
28.5
CTEC21HE
CF2.125[3H-3F]
Tee, CF-F
53.8
25.4
1.2
43.9
35
CTEC21HR
CF2.125[3H-3R]
Tee, CF-F
53.8
25.4
1.2
40.9
35
CTEC21TF
CF2.125[3T-3F]
Tee, CF-F
53.8
25.4
1.2
43.9
35
CTEC21TR
CF2.125[3T-3R]
Tee, CF-F
53.8
25.4
1.2
40.9
35
CTEC27HF
CF2.75[3H-3F]
Tee, CF-F
69.5
38.1
1.2
55.7
50
CTEC27HR
CF2.75[3H-3R]
Tee, CF-F
69.5
38.1
1.2
55.7
50
CTEC27TF
CF2.75[3T-3F]
Tee, CF-F
69.5
38.1
1.2
55.7
50
CTEC27TR
CF2.75[3T-3R]
Tee, CF-F
69.5
38.1
1.2
55.7
50
CTEC33HF
CF3.375[3H-3F]
Tee, CF-F
86
50.8
1.5
68
60
CTEC33HR
CF3.375[3H-3R]
Tee, CF-F
86
50.8
1.5
67.5
60
CTEC33TF
CF3.375[3T-3F]
Tee, CF-F
86
50.8
1.5
68
60
CTEC33TR
CF3.375[3T-3R]
Tee, CF-F
86
50.8
1.5
67.5
60
CTEC45HF
CF4.5[3H-3F]
Tee, CF-F
113.5
63.5
1.5
88.5 79
CTEC45HR
CF4.5[3H-3R]
Tee, CF-F
113.5
63.5
1.5
88.7
79
CTEC45TF
CF4.5[3T-3F]
Tee, CF-F
113.5
63.5
1.5
88.5
79
CTEC45TR
CF4.5[3T-3R]
Tee, CF-F
113.5
63.51.5
88.7
79
CTEC06HF
CF6[3H-3F]
Tee, CF-F
152
101.6
2
140
130
CTEC06HR
CF6[3H-3R]
Tee, CF-F
152
101.6
2
141.3
130
CTEC06TF
CF6[3T-3F]
Tee, CF-F
152
101.6
2
140
130
CTEC06TR
CF6[3T-3R]
Tee, CF-F
152
101.6
2
141.3
130
