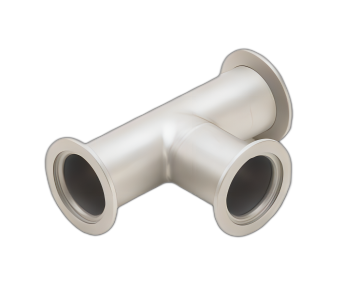

Tee Reducer, ISO-KF

We fabricate these KF (QF) nipples (spools) for HV systems from tubing and KF flanges. The KF (QF) flange is used for through- or foreline vacuum plumbing and for simple HV chamber ports.


Key features of the Tee Reducer, ISO-KF
Features:
Available in 304L stainless steel or aluminum 6061-T6 (standard tees only)
Reducer tees adapt two different flange sizes
Benefits:
Common lengths and tube diameters listed; contact us with your specific requirements
TECHNICAL DATA
Downloads
SIZES
 DN16 to 100mm
Flange
ISO-KF
MATERIAL
 SS / Aluminum
LEAK RATE
< 1 × 10-9 mbar l/s
PRESSURE RANGE
 1 × 10-9 mbar to 2 bar (abs)

Tee, ISO-KF
522.32KB PDF
Download
SPECIFY STANDARD PRODUCT
Get to the product details to specify your requirements to get a quote or to get a specific CAD data download.
Part No.
Size
Description
φA
φB
C
D
d
Manual
Price/Stock

CTEN016
NW16
Tee, ISO-KF
30
19.05
1.2
32
28.5
CTEN025
NW25
Tee, ISO-KF
40
25.4
1.2
38.5
30
CTEN040
NW40
Tee, ISO-KF
55 50
38.1
1.2
53.5
50
CTEN050
NW50
Tee, ISO-KF
75
50.8
1.5
63.5
60
CTEN063
NW63
Tee, ISO-KF
95
63.5
1.5
86
79
CTEN080
NW80
Tee, ISO-KF
114
76.3
2
89
82
CTEN100
NW100
Tee, ISO-KF
134
101.6
2
137
130
