Straight Reducer, CF-F(2Tap, 2Rot)
Universal Straight Reducer, CF-F(2Tap, 2Rot) for vacuum systems. PRECESS provides various kinds of flange for pipeline connection of your system.
Home > Products > Straight Reducer > Straight Reducer, CF-F(2Tap, 2Rot)

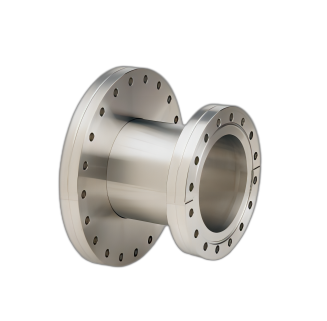

Straight Reducer, CF-F(2Tap, 2Rot)

We fabricate these CF nipples (spools) for UHV systems from 304L stainless steel tubing and knife-edge flanges. The CF flange is the most widely used for high vacuum and UHV applications. Many gauges, instruments, accessories and feedthroughs are available on this flange system.

Key features of the Straight Reducer, CF-F(2Tap, 2Rot)
Features:
Half nipples feature one fixed flange (either tapped or through-hole bolt holes)
Full nipples feature one fixed and one rotatable flange (through-hole bolt holes)
Benefits:
Conical and straight reducer nipples adapt two different flange sizes
Common lengths and tube diameters listed; contact us with your specific requirements
TECHNICAL DATA
Downloads
SIZES
DN63 to 250mm
Flange
 CF-F
MATERIAL
 Stainless steel
LEAK RATE
< 1 × 10-10 mbar l/s
PRESSURE RANGE
 1 × 10-10 mbar to 2 bar (abs)

Straight Reducer, CF-F(2Tap, 2Rot)
485.74KB PDF
Download
SPECIFY STANDARD PRODUCT
Get to the product details to specify your requirements to get a quote or to get a specific CAD data download.
Part No.
Size
Description
φA
φB
φC
L
Manual
Price
Stock

CSCC1321HR
CF1.33,2.125
Straight Reducer, CF-F(2Tap, 2Rot)
34
53.8
19.05
100
CSCC1327HR
CF1.33,2.75
Straight Reducer, CF-F(2Tap, 2Rot)
34
69.5
19.05
100
CSCC2127HR
CF2.125,2.75
Straight Reducer, CF-F(2Tap, 2Rot)
53.
69.5
25.4
100
CSCC2733HR
CF2.75,3.375
Straight Reducer, CF-F(2Tap, 2Rot)
69.5
86
38.1
100
CSCC2745HR
CF2.75,4.5
Straight Reducer, CF-F(2Tap, 2Rot)
69.5
113.5
38.1
150
CSCC3345HR
CF3.375,4.5
Straight Reducer, CF-F(2Tap, 2Rot)
86
113.5
50.8
150
CSCC4506HR
CF4.5,6
Straight Reducer, CF-F(2Tap, 2Rot)
113.5
152
63.5
150
CSCC0608HR
CF6,8
Straight Reducer, CF-F(2Tap, 2Rot)
152
203
101.6
150
CSCC0810HR
CF8,10
Straight Reducer, CF-F(2Tap, 2Rot)
203
254
152.4
200
CSCC1012HR
CF10,12
Straight Reducer, CF-F(2Tap, 2Rot)
154
304
216.3
200
CUSTOMIZED SOLUTION
Specify your customized solution.
If you have your specification already at hand, please upload it and submit it to us. We are happy to send you a quote.
Upload your specification
Maximum upload size: 15 MB, only JPG, PNG, CAD, PDF files are acceptable.
