Straight Reducer, CF-F(2Hole, 2Rot)
Universal Straight Reducer, CF-F(2Hole, 2Rot) for vacuum systems. PRECESS provides various kinds of flange for pipeline connection of your system.
Home > Products > Straight Reducer > Straight Reducer, CF-F(2Hole, 2Rot)

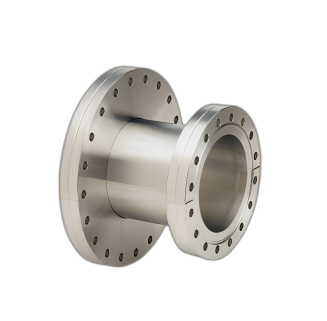

Straight Reducer, CF-F(2Hole, 2Rot)

We fabricate these CF nipples (spools) for UHV systems from 304L stainless steel tubing and knife-edge flanges. The CF flange is the most widely used for high vacuum and UHV applications. Many gauges, instruments, accessories and feedthroughs are available on this flange system.

SIZES
 DN63 to 250mm
Flange
 CF-F
MATERIAL
 Stainless steel
LEAK RATE
 < 1 × 10-10 mbar l/s
PRESSURE RANGE
 1 × 10-10 mbar to 2 bar (abs)

Key features of the Straight Reducer, CF-F(2Hole, 2Rot)
Features:
Half nipples feature one fixed flange (either tapped or through-hole bolt holes)
Full nipples feature one fixed and one rotatable flange (through-hole bolt holes)
Benefits:
Conical and straight reducer nipples adapt two different flange sizes
Common lengths and tube diameters listed; contact us with your specific requirements
TECHNICAL DATA
Downloads
Straight Reducer, CF-F(2Hole, 2Rot)
658.81KB PDF
Download
SPECIFY STANDARD PRODUCT
Get to the product details to specify your requirements to get a quote or to get a specific CAD data download.
Part No.
Size
Description
φA
φB
φC
L
Manual
Price
Stock

CSCG2040
VG20,40
Straight Reducer, CF-F(2Hole, 2Rot)
80
105
25.4
100
CSCG2540
VG25,40
Straight Reducer, CF-F(2Hole, 2Rot)
90
105
25.4
100
CSCG4050
VG40,50
Straight Reducer, CF-F(2Hole, 2Rot)
105
120
38.1
100
CSCG5065
VG50,65
Straight Reducer, CF-F(2Hole, 2Rot)
120
145
50.8
150
CSCG6580
VG65,80
Straight Reducer, CF-F(2Hole, 2Rot)
145
160
63.5
150
CSCG80100
VG80,100
Straight Reducer, CF-F(2Hole, 2Rot)
160
185
76.3
150
CSCG100150
VG100,150
Straight Reducer, CF-F(2Hole, 2Rot)
185
235
101.6
150
CSCG150200
VG150,200
Straight Reducer, CF-F(2Hole, 2Rot)
235
300
152.4
200
CSCG200250
VG200,250
Straight Reducer, CF-F(2Hole, 2Rot)
300
350
216.3
200
CSCG250300
VG250,300
Straight Reducer, CF-F(2Hole, 2Rot)
350
400
267.4
200
CUSTOMIZED SOLUTION
Specify your customized solution.
If you have your specification already at hand, please upload it and submit it to us. We are happy to send you a quote.
Upload your specification
Maximum upload size: 15 MB, only JPG, PNG, CAD, PDF files are acceptable.
