Straight Reducer, CF-F(2Hole, 2Fix)
Universal Straight Reducer, CF-F(2Hole, 2Fix) for vacuum systems. PRECESS provides various kinds of flange for pipeline connection of your system.
Home > Products > Straight Reducer > Straight Reducer, CF-F(2Hole, 2Fix)

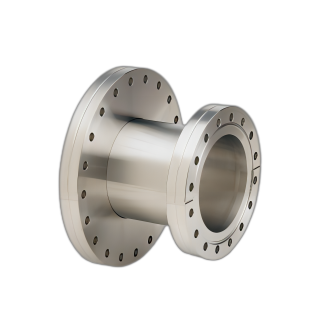

Straight Reducer, CF-F(2Hole, 2Fix)

We fabricate these CF nipples (spools) for UHV systems from 304L stainless steel tubing and knife-edge flanges. The CF flange is the most widely used for high vacuum and UHV applications. Many gauges, instruments, accessories and feedthroughs are available on this flange system.

Key features of the Straight Reducer, CF-F(2Hole, 2Fix)
Features:
Half nipples feature one fixed flange (either tapped or through-hole bolt holes)
Full nipples feature one fixed and one rotatable flange (through-hole bolt holes)
Benefits:
Conical and straight reducer nipples adapt two different flange sizes
Common lengths and tube diameters listed; contact us with your specific requirements
TECHNICAL DATA
Downloads
SIZES
 DN63 to 250mm
Flange
CF-F
MATERIAL
 Stainless steel
LEAK RATE
 < 1 × 10-10 mbar l/s
PRESSURE RANGE
 1 × 10-10 mbar to 2 bar (abs)

Straight Reducer, CF-F(2Hole, 2Fix)
658.81KB PDF
Download
SPECIFY STANDARD PRODUCT
Get to the product details to specify your requirements to get a quote or to get a specific CAD data download.
Part No.
Size
Description
φA
φB
φC
L
Manual
Price
Stock

CSCJ2040
VF20,40
Straight Reducer, CF-F(2Hole, 2Fix)
80
105
25.4
100
CSCJ2540
VF25,40
Straight Reducer, CF-F(2Hole, 2Fix)
90
105
25.4
100
CSCJ4050
VF40,50
Straight Reducer, CF-F(2Hole, 2Fix)
105
120
38.1
100
CSCJ5065
VF50,65
Straight Reducer, CF-F(2Hole, 2Fix)
120
145
50.8
150
CSCJ6580
VF65,80
Straight Reducer, CF-F(2Hole, 2Fix)
145
160
63.5
150
CSCJ80100
VF80,100
Straight Reducer, CF-F(2Hole, 2Fix)
160
185
76.3
150
CSCJ100150
VF100,150
Straight Reducer, CF-F(2Hole, 2Fix)
185
235
101.6
150
CSCJ150200
VF150,200
Straight Reducer, CF-F(2Hole, 2Fix)
235
300
152.4
200
CSCJ200250
VF200,250
Straight Reducer, CF-F(2Hole, 2Fix)
300
350
216.3
200
CSCJ250300
VF250,300
Straight Reducer, CF-F(2Hole, 2Fix)
50
400
267.4
200
CUSTOMIZED SOLUTION
Specify your customized solution.
If you have your specification already at hand, please upload it and submit it to us. We are happy to send you a quote.
Upload your specification
Maximum upload size: 15 MB, only JPG, PNG, CAD, PDF files are acceptable.
