1- Straight l Reducer, ISO-KF
Universal straight reducer, ISO-KF for vacuum systems. PRECESS provides various kinds of flange for pipeline connection of your system.
Home > Products > Straight Reducer > 1- Straight l Reducer, ISO-KF

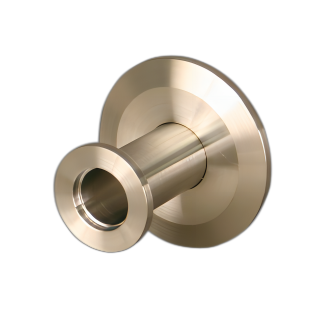

1- Straight l Reducer, ISO-KF

We fabricate these KF (QF) nipples (spools) for HV systems from tubing and KF flanges. The KF (QF) flange is used for through- or foreline vacuum plumbing and for simple HV chamber ports.

Key features of the 1- Straight l Reducer, ISO-KF
Features:
Half nipples feature one KF flange
Full nipples feature two KF flanges
Benefits:
Conical and straight reducer nipples adapt two different flange sizes
Common lengths and tube diameters listed; contact us with your specific requirements
TECHNICAL DATA
Downloads
SIZES
DN16 to 50mm
Flange
 ISO-KF
MATERIAL
 SS / Aluminum
LEAK RATE
 < 1 × 10-9 mbar l/s
PRESSURE RANGE
1 × 10-9 mbar to 2 bar (abs)

Straight Reducer, ISO-KF
720.27KB PDF
Download
SPECIFY STANDARD PRODUCT
Get to the product details to specify your requirements to get a quote or to get a specific CAD data download.
Part No.
Size
Description
φA
φB
φC
L
Manual
Price
Stock

CSCK6380
ISOK63,80
Straight Reducer, ISO-KF
110
95
63.5
63.5
CSCK63100
ISOK63,100
Straight Reducer, ISO-KF
130
95
63.5
63.5
CSCK63160
ISOK63,160
Straight Reducer, ISO-KF
180
95
63.5
63.5
CSCK80100
ISOK80,100
Straight Reducer, ISO-KF
130
110
76.3
63.5
CSCK100160
ISOK100,160
Straight Reducer, ISO-KF
180
130
101.6
63.5
CSCK160200
ISOK160,200
Straight Reducer, ISO-KF
240
180
165.2
200
CSCK160250
ISOK160,250
Straight Reducer, ISO-KF
290
180
165.2
200
CSCK200250
ISOK200,250
Straight Reducer, ISO-KF
290
240
216.3
200
CUSTOMIZED SOLUTION
Specify your customized solution.
If you have your specification already at hand, please upload it and submit it to us. We are happy to send you a quote.
Upload your specification
Maximum upload size: 15 MB, only JPG, PNG, CAD, PDF files are acceptable.
