Conical Reducer, CF-F
Universal conical reducer, CF-F for vacuum systems. PRECESS provides various kinds of flange for pipeline connection of your system.
Home > Products > Conical Reducer > Conical Reducer, CF-F

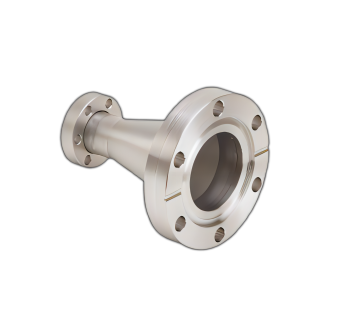

Conical Reducer, CF-F

We fabricate these CF nipples (spools) for UHV systems from 304L stainless steel tubing and knife-edge flanges. The CF flange is the most widely used for high vacuum and UHV applications. Many gauges, instruments, accessories and feedthroughs are available on this flange system.


Key features of the Conical Reducer, CF-F
Features:
Half nipples feature one fixed flange (either tapped or through-hole bolt holes)
Full nipples feature one fixed and one rotatable flange (through-hole bolt holes)
Benefits:
Conical and straight reducer nipples adapt two different flange sizes
Conical and straight reducer nipples adapt two different flange sizes
TECHNICAL DATA
Downloads
SIZES
DN16 to 320mm
Flange
 CF-F
MATERIAL
 Stainless steel
LEAK RATE
 < 1 × 10-10 mbar l/s
PRESSURE RANGE
 1 × 10-10 mbar to 2 bar (abs)

Conical Reducer, CF-F
909.25KB PDF
Download
SPECIFY STANDARD PRODUCT
Get to the product details to specify your requirements to get a quote or to get a specific CAD data download.
Part No.
Size
Description
φA
φB
L
Manual
Price
Stock

CCRJ2040
VF20,40
Conical Reducer, CF-F
80
105
77
CCRJ2540
VF25,40
Conical Reducer, CF-F
90
105
77
CCRJ4050
VF40,50
Conical Reducer, CF-F
105
120
77
CCRJ5065
VF50,65
Conical Reducer, CF-F
120
145
77
CCRJ6580
VF65,80
Conical Reducer, CF-F
145
160
78
CCRJ80100
VF80,100
Conical Reducer, CF-F
160
185
115
CUSTOMIZED SOLUTION
Specify your customized solution.
If you have your specification already at hand, please upload it and submit it to us. We are happy to send you a quote.
Upload your specification
Maximum upload size: 15 MB, only JPG, PNG, CAD, PDF files are acceptable.
