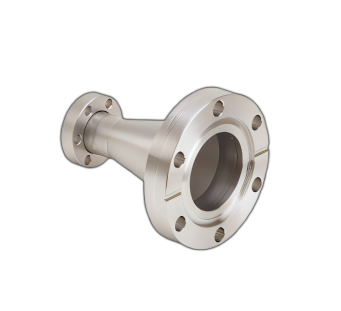

Conical Reducer, ISO-F
Universal conical reducer, ISO-F for vacuum systems. PRECESS provides various kinds of flange for pipeline connection of your system.
Home > Products > Conical Reducer > Conical Reducer, ISO-F
Conical Reducer, ISO-F

We fabricate these KF (QF) nipples (spools) for HV systems from tubing and KF flanges. The KF (QF) flange is used for through- or foreline vacuum plumbing and for simple HV chamber ports.

Key features of the Conical Reducer, ISO-F
Features:
Half nipples feature one KF flange
Full nipples feature two KF flanges
Benefits:
Conical and straight reducer nipples adapt two different flange sizes
Common lengths and tube diameters listed; contact us with your specific requirements
TECHNICAL DATA
Downloads
SIZES
DN16 to 100mm
Flange
 ISO-F
MATERIAL
 SS / Aluminum
LEAK RATE
< 1 × 10-9 mbar l/s
PRESSURE RANGE
1 × 10-9 mbar to 2 bar (abs)

Conical Reducer, ISO-F
612.07KB PDF
Download
SPECIFY STANDARD PRODUCT
Get to the product details to specify your requirements to get a quote or to get a specific CAD data download.
Part No.
Size
Description
φA
φB
L
L
Manual
Price
Stock

CCRF6380
ISOF63,80
Conical Reducer, ISO-F
130
145
81
67
CCRF63100
ISOF63,100
Conical Reducer, ISO-F
130
165
117
103
CCRF63160
ISOF63,160
Conical Reducer, ISO-F
130
225
153.7
139.7
CCRF80100
ISOF80,100
Conical Reducer, ISO-F
145
165
117
103
CCRF80160
ISOF80,160
Conical Reducer, ISO-F
145
225
153.7
139.7
CCRF100160
ISOF100,160
Conical Reducer, ISO-F
165
225
153.7
139.7
CUSTOMIZED SOLUTION
Specify your customized solution.
If you have your specification already at hand, please upload it and submit it to us. We are happy to send you a quote.
Upload your specification
Maximum upload size: 15 MB, only JPG, PNG, CAD, PDF files are acceptable.
