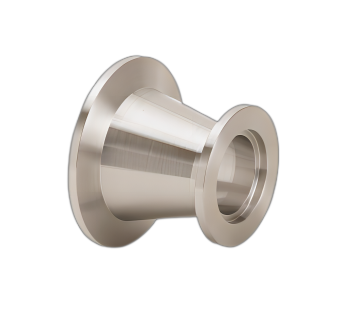

1-Conical Reducer, ISO-KF

We fabricate these KF (QF) nipples (spools) for HV systems from tubing and KF flanges. The KF (QF) flange is used for through- or foreline vacuum plumbing and for simple HV chamber ports.

Key features of the 1-Conical Reducer, ISO-KF
Features:
Half nipples feature one KF flange
Full nipples feature two KF flanges
Benefits:
Conical and straight reducer nipples adapt two different flange sizes
Common lengths and tube diameters listed; contact us with your specific requirements
TECHNICAL DATA
Downloads
SIZES
DN16 to 100mm
Flange
 ISO-KF
MATERIAL
 SS / Aluminum
LEAK RATE
< 1 × 10-9 mbar l/s
PRESSURE RANGE
 1 × 10-9 mbar to 2 bar (abs)

Conical Reducer, ISO-KF
612.07KB PDF
Download
SPECIFY STANDARD PRODUCT
Get to the product details to specify your requirements to get a quote or to get a specific CAD data download.
Part No.
Size
Description
φA
φB
L
L
Manual
Price
Stock

CCRN1625
NW16,25
Conical Reducer, ISO-KF
30
40
57
57
CCRN1640
NW16,40
Conical Reducer, ISO-KF
30
55
57
50
CCRN1650
NW16,50
Conical Reducer, ISO-KF
30
75
57
50
CCRN2540
NW25,40
Conical Reducer, ISO-KF
40
55
74
67
CCRN255
NW25,50
Conical Reducer, ISO-KF
40
75
74
67
CCRN2563
NW25,63
Conical Reducer, ISO-KF
40
95
77.5
67
CCRN4050
NW40,50
Conical Reducer, ISO-KF
55
75
74
67
CCRN4063
NW40,63
Conical Reducer, ISO-KF
55
95
77.5
67
CCRN4080
NW40,80
Conical Reducer, ISO-KF
55
114
77.5
67
CCRN5063
NW50,63
Conical Reducer, ISO-KF
75
95
77.5
67
CCRN5080
NW50,80
Conical Reducer, ISO-KF
75
114
77.5
67
CCRN6380
NW63,80
Conical Reducer, ISO-KF
95
114
81
67
CCRN50100
NW50,100
Conical Reducer, ISO-KF
75
134
113.5
103
CCRN63100
NW63,100
Conical Reducer, ISO-KF
95
134
117
103
CCRN80100
NW80,100
Conical Reducer, ISO-KF
114
134
117
103
