Elbow, CF-F(45 Degree)
Universal elbow, CF-F(45 Degree) for vacuum systems. PRECESS provides various kinds of flange for pipeline connection of your system.
Home > Products > Elbow > Elbow, CF-F(45 Degree)

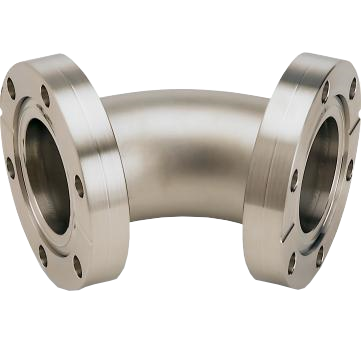

Elbow, CF-F(45 Degree)

We fabricate these CF elbows for UHV systems from 304L stainless steel tubing and knife-edge flanges. The CF flange is the most widely used for high vacuum and UHV applications. Many gauges, instruments, accessories and feedthroughs are available on this flange system.

Key features of the Elbow, CF-F(45 Degree)
Features:
Available in 316L stainless steel or aluminum 6061-T6 (miter elbows only)
Radius or miter design
Benefits:
Common lengths and tube diameters listed; contact us with your specific requirements
TECHNICAL DATA
Downloads
SIZES
 DN63 to 320mm
Flange
 CF-F
MATERIAL
 Stainless steel
LEAK RATE
 < 1 × 10-10 mbar l/s
PRESSURE RANGE
1 × 10-10 mbar to 2 bar (abs)

Elbow, CF-F(45 Degree)
839.88KB PDF
Download
SPECIFY STANDARD PRODUCT
Get to the product details to specify your requirements to get a quote or to get a specific CAD data download.
Part No.
Size
Description
φA
φB
D
d1
d2
Manual
Price/Stock

CEL13HFF
CF1.33[2H-2F]
Elbow, CF-F(45 Degree)
34
19.05
11.8
4.3
4.3
CEL13HRF
CF1.33[2H-2R]
Elbow, CF-F(45 Degree)
34
19.05
11.8
4.3
4.3
CEL13HRFX
CF1.33[2H-1R]
Elbow, CF-F(45 Degree)
34
19.05
11.8
4.3
4.3
CEL13TFF
CF1.33[2T-2F]
Elbow, CF-F(45 Degree)
34
19.05
11.8
4.3
4.3
CEL13TRF
CF1.33[2T-2R]
Elbow, CF-F(45 Degree)
34
19.05
11.8
4.3
4.3
CEL13TRFX
CF1.33[2T-1R]
Elbow, CF-F(45 Degree)
34
19.05
11.8
4.3
4.3
CEL13TRFZ
CF1.33[1T-1H-1R]
Elbow, CF-F(45 Degree)
34
19.05
11.8
4.3
4.3
CEL21HFF
CF2.125[2H-2F]
Elbow, CF-F(45 Degree)
53.8
25.4
14.5
89
8.9
CEL21HRF
CF2.125[2h-2R]
Elbow, CF-F(45 Degree)
53.8
25.4
14.5
5.9
5.9
CEL21HRFX
CF2.125[2H-1R]
Elbow, CF-F(45 Degree)
53.8
25.4
14.5
8.9
5.9
CEL21TFF
CF2.125[2T-2F]
Elbow, CF-F(45 Degree)
53.8
25.4
14.5
8.9
8.9
CEL21TRF
CF2.125[2T-2R]
Elbow, CF-F(45 Degree)
53.8
25.4
14.5
5.9
5.9
CEL21TRFX
CF2.125[2T-1R]
Elbow, CF-F(45 Degree)
53.8
25.4
14.5
8.9
5.9
CEL21TRFZ
CF2.125[1T-1H-1R]
Elbow, CF-F(45 Degree)
53.8
25.4
14.5
8.9
5.9
CEL27HFF
CF2.75[2H-2F]
Elbow, CF-F(45 Degree)
69.5
38.1
20.7
5.7
5.7
CEL27HRF
CF2.75[2H-2R]
Elbow, CF-F(45 Degree)
69.5
38.1
20.7
5.7
5.7
CEL2727HRFX
CF2.75[2H-1R]
Elbow, CF-F(45 Degree)
69.5
38.1
20.7
5.7
5.7
CEL27TFF
CF2.75[2T-2F]
Elbow, CF-F(45 Degree)
69.5
38.1
20.7
5.7
5.7
CEL27TRF
CF2.75[2T-2R]
Elbow, CF-F(45 Degree)
69.5
38.1
20.7
5.7
5.7
CEL27TRFX
CF2.75[2T-1R]
Elbow, CF-F(45 Degree)
69.5
38.1
20.7
5.7
5.7
CEL27TRFZ
CF2.75[1T-1H-1R]
Elbow, CF-F(45 Degree)
69.5
38.1
20.7
5.7
5.7
CEL33HFF
CF3.375[2H-2F]
Elbow, CF-F(45 Degree)
86
50.8
24.9
8
8
CEL33HRF
CF3.375[2H-2R]
Elbow, CF-F(45 Degree)
86
50.8
24.9
7.5
7.5
CEL33HRFX
CF3.375[2H-1R]
Elbow, CF-F(45 Degree)
86
50.8
24.9
8
7.5
CEL33TFF
CF3.375[2T-2F]
Elbow, CF-F(45 Degree)
86
50.8
24.9
8
8
CEL33TRF
CF3.375[2T-2R]
Elbow, CF-F(45 Degree)
86
50.8
24.9
7.5
7.5
CEL33TRFX
CF3.375[2T-1R]
Elbow, CF-F(45 Degree)
86
50.8
24.9
8
7.5
CEL33TRFZ
CF3.375[1T-1H-1R]
Elbow, CF-F(45 Degree)
86
50.8
24.9
8
7.5
CEL45HFF
CF4.5[2H-2F]
Elbow, CF-F(45 Degree)
113.5
63.5
32.7
9.5
9.5
CEL45HRF
CF4.5[2H-2R]
Elbow, CF-F(45 Degree)
113.5
63.5
32.7
10.
10.7
7
CEL45HRFX
CF4.5[2H-1R]
Elbow, CF-F(45 Degree)
113.5
63.5
32.7
9.5
10.7
CEL45TFF
CF4.5[2T-2F]
Elbow, CF-F(45 Degree)
113.5
63.5
32.7
9.5
9.5
CEL45TRF
CF4.5[2T-2R]
Elbow, CF-F(45 Degree)
113.5
63.5
32.7
10.7
10.7
CEL45TRFX
CF4.5[2T-1R]
Elbow, CF-F(45 Degree)
113.5
63.5
32.7
9.5
10.7
CEL45TRFZ
CF4.5[]1T-1H-1R
Elbow, CF-F(45 Degree)
113.5
63.5
32.7
9.5
10.7
CEL06FF
CF6[2H-2F]
Elbow, CF-F(45 Degree)
152
101.6
53.8
10
10
CEL06HRF
CF6[2H-2R]
Elbow, CF-F(45 Degree)
152
101.6
53.8
11.3
11.3
CEL06HRFX
CF6[2H-1R]
Elbow, CF-F(45 Degree)
152
101.6
53.8
10
11.3
CEL06TFF
CF6[2T-2F]
Elbow, CF-F(45 Degree)
152
101.6
53.8
10
10
CEL06TRF
CF6[2T-2R]
Elbow, CF-F(45 Degree)
152
101.6
53.8
11.3
11.3
CEL06TRFX
CF6[2T-1R]
Elbow, CF-F(45 Degree)
152
101.6
53.8
10
11.3
CEL06TRFZ
CF6[]1T-1H-1R
Elbow, CF-F(45 Degree)
152
101.6
53.8
10
11.3
CUSTOMIZED SOLUTION
Specify your customized solution.
If you have your specification already at hand, please upload it and submit it to us. We are happy to send you a quote.
Upload your specification
Maximum upload size: 15 MB, only JPG, PNG, CAD, PDF files are acceptable.
