Elbow, ISO-F(45 degree)
Universal elbow, ISO-F(45 degree) for vacuum systems. PRECESS provides various kinds of flange for pipeline connection of your system.
Home > Products > Elbow > Elbow, ISO-F(45 degree)

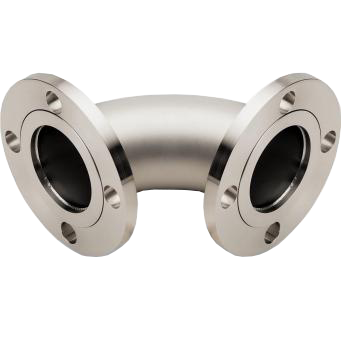

Elbow, ISO-F(45 degree)

We fabricate these ISO-F elbows for HV systems from tubing and KF flanges. The ISO-F flange is used for through- or foreline vacuum plumbing and for simple HV chamber ports.

Key features of the Elbow, ISO-F(45 degree)
Features:
Available in 316L stainless steel or aluminum 6061-T6 (miter elbows only)
Benefits:
Radius or miter design
Common lengths and tube diameters listed; contact us with your specific requirements
TECHNICAL DATA
Downloads
SIZES
 DN63 to 250mm
Flange
 ISO-F
MATERIAL
 SS / Aluminum
LEAK RATE
< 1 × 10-9 mbar l/s
PRESSURE RANGE
1 × 10-9 mbar to 2 bar (abs)

Elbow, ISO-F(45 degree)
680.63KB PDF
Download
SPECIFY STANDARD PRODUCT
Get to the product details to specify your requirements to get a quote or to get a specific CAD data download.
Part No.
Size
Description
φA
φB
D
d
Manual
Price
Stock

DELF063M
ISOF63
Elbow, ISO-F(45 degree)
130
63.5
78
7
DELF080M
ISOF80
Elbow, ISO-F(45 degree)
145
76.3
85
7
DELF100M
ISOF100
Elbow, ISO-F(45 degree)
165
101.6
100
7
DELF160M
ISOF160
Elbow, ISO-F(45 degree)
225
152.4
150
7
DELF200M
ISOF200
Elbow, ISO-F(45 degree)
285
216.3
200
7
DELF250M
ISOF250
Elbow, ISO-F(45 degree)
332
267.4
250
7
CUSTOMIZED SOLUTION
Specify your customized solution.
If you have your specification already at hand, please upload it and submit it to us. We are happy to send you a quote.
Upload your specification
Maximum upload size: 15 MB, only JPG, PNG, CAD, PDF files are acceptable.
