Elbow, ISO-K(45 degree)
Universal elbow, ISO-K(45 degree) for vacuum systems. PRECESS provides various kinds of flange for pipeline connection of your system.
Home > Products > Elbow > Elbow, ISO-K(45 degree)

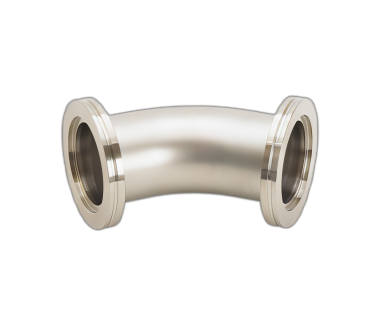

Elbow, ISO-K(45 degree)
 We fabricate these ISO-K (QF) elbows for HV systems from tubing and KF flanges. The ISO-K flange is used for through- or foreline vacuum plumbing and for simple HV chamber ports.
Key features of the Elbow, ISO-K(45 degree)
Features:
Available in 316L stainless steel or aluminum 6061-T6 (miter elbows only)
Radius or miter designRadius or miter design
Benefits:
Common lengths and tube diameters listed; contact us with your specific requirements
TECHNICAL DATA
Downloads
SIZES
 DN63 to 250mm
Flange
 ISO-K
MATERIAL
 SS / Aluminum
LEAK RATE
 < 1 × 10-9 mbar l/s
PRESSURE RANGE
 1 × 10-9 mbar to 2 bar (abs)

Elbow, ISO-K(45 degree)
555.11KB PDF
Download
SPECIFY STANDARD PRODUCT
Get to the product details to specify your requirements to get a quote or to get a specific CAD data download.
Part No.
Size
Description
φA
φB
D
d
Manual
Price
Stock

DELF063
ISOF63
Elbow, ISO-K(45 degree)
130
63.5
79
7
DELF063.F
ISOF63-45°
Elbow, ISO-K(45 degree)
130
63.5
32.7
7
DELF080
ISOF80
Elbow, ISO-K(45 degree)
145
76.3
82
7
DELF080F
ISOF80-45°
Elbow, ISO-K(45 degree)
145
76.3
34
7
DELF100
ISOF100
Elbow, ISO-K(45 degree)
165
101.6
130
7
DELF100F
ISOF100-45°
Elbow, ISO-K(45 degree)
165
101.6
53.9
7
DELF160
ISOF160
Elbow, ISO-K(45 degree)
225
165.2
152.4
7
DELF160F
ISOF160-45°
Elbow, ISO-K(45 degree)
225
165.2
94.7
7
DELF200
ISOF200
Elbow, ISO-K(45 degree)
285
216.3
203.2
7
DELF200F
ISOF200-45°
Elbow, ISO-K(45 degree)
285
216.3
126.3
7
DELF250
ISOF250
Elbow, ISO-K(45 degree)
335
267.4
254
7
DELF250F
ISOF250-45°
Elbow, ISO-K(45 degree)
335
267.4
157.8
7
CUSTOMIZED SOLUTION
Specify your customized solution.
If you have your specification already at hand, please upload it and submit it to us. We are happy to send you a quote.
Upload your specification
Maximum upload size: 15 MB, only JPG, PNG, CAD, PDF files are acceptable.
