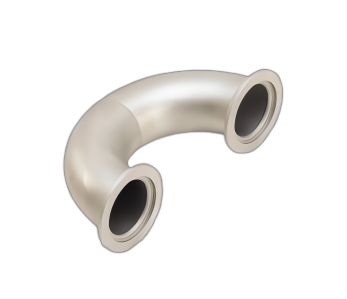

Key features of the Elbow, ISO-KF(180 Degree)

Features:

Available in 316L stainless steel or aluminum 6061-T6 (miter elbows only)

Benefits:

Radius or miter design

Common lengths and tube diameters listed; contact us with your specific requirements

TECHNICAL DATA

Downloads

SIZES	DN16 to 50mm
Flange	ISO-KF
MATERIAL	SS / Aluminum
LEAK RATE	< 1 × 10-9 mbar l/s
PRESSURE RANGE	1 × 10-9 mbar to 2 bar (abs)

Elbow, ISO-KF(180 Degree)

232.4KB PDF

Download

SPECIFY STANDARD PRODUCT

Get to the product details to specify your requirements to get a quote or to get a specific CAD data download.

Part No.

Size

Description

φA

φB

Manual

Price

Stock

DELK063

ISOK63

Elbow, ISO-KF(180 Degree)

63.5

DELK063F

ISOK63-45°

Elbow, ISO-KF(180 Degree)

63.5

32.7

DELK080

ISOK80

Elbow, ISO-KF(180 Degree)

110

76.3

DELK080F

ISOK80-45°

Elbow, ISO-KF(180 Degree)

110

76.3

DELK100

ISOK100

Elbow, ISO-KF(180 Degree)

130

101.6

130

DELK100F

ISOK100-45°

Elbow, ISO-KF(180 Degree)

130

101.6

53.9

DELK125

ISOK125

Elbow, ISO-KF(180 Degree)

155

139.8

127

DELK125F

ISOK125-45°

Elbow, ISO-KF(180 Degree)

155

139.8

78.9

DELK160

ISOK160

Elbow, ISO-KF(180 Degree)

180

165.2

152.4

DELK160F

ISOK160-45°

Elbow, ISO-KF(180 Degree)Elbow, ISO-KF(180 Degree)

180

165.2

94.7

DELK200

ISOK200

Elbow, ISO-KF(180 Degree)

240

216.3

203.2

DELK200F

ISOK200-45°

Elbow, ISO-KF(180 Degree)

240

216.3

126.3

DELK250

ISOK250

Elbow, ISO-KF(180 Degree)

290

267.4

254

DELK250F

ISOK250-45°

Elbow, ISO-KF(180 Degree)

290

267.4

157.8
