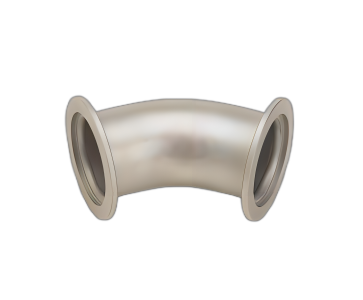

Elbow, ISO-KF(45 degree)

We fabricate these KF (QF) elbows for HV systems from tubing and KF flanges. The KF (QF) flange is used for through- or foreline vacuum plumbing and for simple HV chamber ports.

Key features of the Elbow, ISO-KF(45 degree)

Features:

Available in 316L stainless steel or aluminum 6061-T6 (miter elbows only)

Benefits:

Radius or miter design

Common lengths and tube diameters listed; contact us with your specific requirements

TECHNICAL DATA

Downloads

SIZES	DN16 to 100mm
Flange	ISO-KF
MATERIAL	SS / Aluminum

Elbow, ISO-KF(45 degree)

555.11KB PDF

Download

SPECIFY STANDARD PRODUCT

Get to the product details to specify your requirements to get a quote or to get a specific CAD data download.

Part No.

Size

Description

φA

φB

Manual

Price

Stock

DELN016

NW16

Elbow, ISO-KF(45 degree)

19.05

28.5

3.5

DELN016F

NW16-45°

Elbow, ISO-KF(45 degree)

19.05

11.8

3.5

DELN025

NW25

Elbow, ISO-KF(45 degree)

25.4

3.5

DELN025F

NW25-45°

Elbow, ISO-KF(45 degree)

25.4

14.5

3.5

DELN040

NW40

Elbow, ISO-KF(45 degree)

38.1

3.5

DELN040F

NW40-45°

Elbow, ISO-KF(45 degree)

38.1

20.7

3.5

DELN050

NW50

Elbow, ISO-KF(45 degree)

50.8

3.5

DELN050F

NW50-45°

Elbow, ISO-KF(45 degree)

50.8

24.9

3.5

DELN063

NW63

Elbow, ISO-KF(45 degree)

63.5

DELN063F

NW63-45°

Elbow, ISO-KF(45 degree)

63.5

32.7

DELN080

NW80

Elbow, ISO-KF(45 degree)

114

76.3

DELN080F

NW80-45°

Elbow, ISO-KF(45 degree)

114

76.3

DELN100

NW100

Elbow, ISO-KF(45 degree)

134

101.6

130

DELN100F

NW100-45°

Elbow, ISO-KF(45 degree)

134

101.6

53.8
