Half Nipple, VCR-CF(Tap)
Universal half nipple, VCR-CF(Tap) for vacuum systems. PRECESS provides various kinds of flange for pipeline connection of your system.
Home > Products > Half Nipple, VCR > Half Nipple, VCR-CF(Tap)

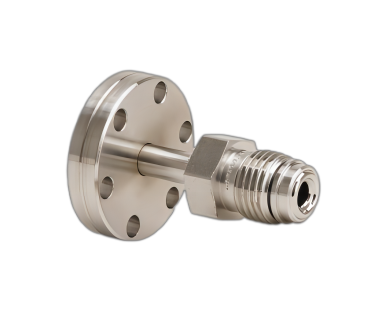

Half Nipple, VCR-CF(Tap)
Flange to VCR fitting adapters allow the mating of one type of flange system to a Swagelok VCR fitting. All of our flange to fitting adapters are manufactured from 304 series stainless steel (unless otherwise noted).

Key features of the Half Nipple, VCR-CF(Tap)
Features:
Low cost of ownership
VCR fittings seal by the compression of a gasket between two highly polished beads on the surfaces of the VCR connectors
Benefits:
Adapters available with male and female VCR connectors terminating in either CF or KF flanges
CF flanged adapters are UHV compatible
TECHNICAL DATA
Downloads
SIZES
DN16 to 50mm
Flange
VCR-CF(Tap)
MATERIAL
 Stainless steel
LEAK RATE
 < 1 × 10-10 mbar l/s
PRESSURE RANGE
 1 × 10-10 mbar to 2 bar (abs)

half nipple, VCR-CF(Tap)
706.61KB PDF
Download
SPECIFY STANDARD PRODUCT
Get to the product details to specify your requirements to get a quote or to get a specific CAD data download.
Part No.
Size
Description
φA
φB
L
Manual
Price
Stock

CHC13TF12F
CF1.33-1/2-F
VCR-KF
34
12.7
61.41
CHC13TF12M
CF1.33-1/2-M
VCR-KF
34
12.7
46.8
CHC13TF14F
CF1.33-1/4-F
VCR-KF
34
6.35
57.1
CHC13TF14M
CF1.33-1/4-M
VCR-KF
34
6.35
44.5
CHC27TF12F
CF2.75-1/2-F
VCR-KF
69.5
12.7
61.36
CHC27TF12M
CF2.75-1/2-M
VCR-KF
69.5
12.7
46.7
CHC27TF14F
CF2.75-1/4-F
VCR-KF
69.5
6.35
57.05
CHC27TF14M
CF2.75-1/4-M
VCR-KF
69.5
6.35
44.4
CUSTOMIZED SOLUTION
Specify your customized solution.
If you have your specification already at hand, please upload it and submit it to us. We are happy to send you a quote.
Upload your specification
Maximum upload size: 15 MB, only JPG, PNG, CAD, PDF files are acceptable.
