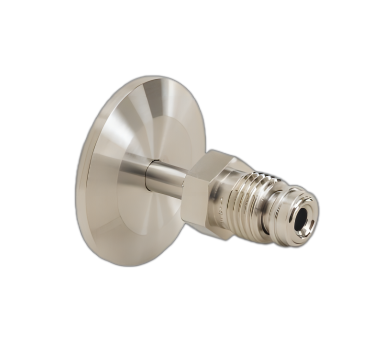

Half Nipple, VCR-KF

Flange to VCR fitting adapters allow the mating of one type of flange system to a Swagelok VCR fitting. All of our flange to fitting adapters are manufactured from 304 series stainless steel (unless otherwise noted).


SIZES
DN16 to 50mm
Flange
 VCR-KF
MATERIAL
SS / Aluminum
LEAK RATE
 < 1 × 10-9 mbar l/s
PRESSURE RANGE
 1 × 10-9 mbar to 2 bar (abs)

Key features of the Half Nipple, VCR-KF
Features:
Low cost of ownership
VCR fittings seal by the compression of a gasket between two highly polished beads on the surfaces of the VCR connectors
Benefits:
Adapters available with male and female VCR connectors terminating in either CF or KF flanges
CF flanged adapters are UHV compatible
TECHNICAL DATA
Downloads
Half Nipple, VCR-K
706.61KB PDF
Download
SPECIFY STANDARD PRODUCT
Get to the product details to specify your requirements to get a quote or to get a specific CAD data download.
Part No.
Size
Description
φA
φB
L
Manual
Price
Stock

CHZN1612F
NW16-1/2F
VCR-KF
30
12.7
61.16
CHZN1612M
NW16-1/2M
VCR-KF
30
12.7
45.5
CHZN1614F
NW16-1/4F
VCR-KF
30
6.35
55.8
CHZN1614M
NW16-1/4M
VCR-KF
30
6.35
43.2
CHZN2512F
NW25-1/2F
VCR-KF
40
12.7
60.16
CHZN2512M
NW25-1/2M
VCR-KF
40
12.7
45.5
CHZN2514F
NW25-1/4F
VCR-KF
40
6.35
55.85
CHZN2514M
NW25-1/4M
VCR-KF
40
6.35
43.2
CHZN4012F
NW40-1/2F
VCR-KF
55
12.7
60.16
CHZN4012M
NW40-1/2M
VCR-KF
55
12.7
45.5
CHZN4014F
NW40-1/4F
VCR-KF
55
6.35
55.85
CHZN4014M
NW40-1/4M
VCR-KF
55
6.35
43.2
CHZN5012F
NW50-1/2F
VCR-KF
75
12.7
60.16
CHZN5012M
NW50-1/2M
VCR-KF
75
12.7
45.5
CHZN5014F
NW50-1/4F
VCR-KF
75
6.35
55.85
CHZN5014M
NW50-1/4M
VCR-KF
75
6.35
43.2
CUSTOMIZED SOLUTION
Specify your customized solution.
If you have your specification already at hand, please upload it and submit it to us. We are happy to send you a quote.
Upload your specification
Maximum upload size: 15 MB, only JPG, PNG, CAD, PDF files are acceptable.
Contact
