Full Nipple, CF-F
Universal full nipple, CF-F for vacuum systems. PRECESS provides various kinds of flange for pipeline connection of your system.
Home > Products > Full Nipple > Full Nipple, CF-F

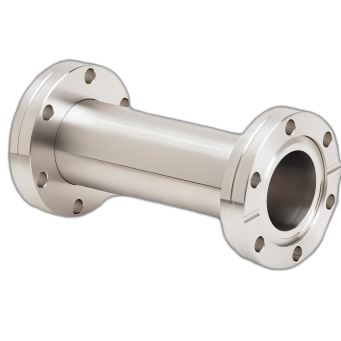

Full Nipple, CF-F

We fabricate these CF nipples (spools) for UHV systems from 304L stainless steel tubing and knife-edge flanges. The CF flange is the most widely used for high vacuum and UHV applications. Many gauges, instruments, accessories and feedthroughs are available on this flange system.

Key features of the Full Nipple, CF-F
Features:
Low cost of ownership
Half nipples feature one fixed flange (either tapped or through-hole bolt holes)
Full nipples feature one fixed and one rotatable flange (through-hole bolt holes)
Benefits:
Conical and straight reducer nipples adapt two different flange sizes
Common lengths and tube diameters listed; contact us with your specific requirements
Metric Tapped flanges available on request
TECHNICAL DATA
Downloads
SIZES
 DN16 to 320mm
Flange
CF-F
MATERIAL
 Stainless steel
LEAK RATE
< 1 × 10-10 mbar l/s
PRESSURE RANGE
 1 × 10-10 mbar to 2 bar (abs)

Full Nipple, CF-F
764.17KB PDF
Download
SPECIFY STANDARD PRODUCT
Get to the product details to specify your requirements to get a quote or to get a specific CAD data download.
Part No.
Size
Description
φA
φB
L
Manual
Price
Stock

CFUJ020
VF20
Full Nipple, ISO-F
80
19.05
100
CFUJ025
VF25
Full Nipple, ISO-F
90
25.4
100
CFUJ040
VF40
Full Nipple, ISO-F
105
38.1
100
CFUJ050
VF50
Full Nipple, ISO-F
120
50.8
100
CFUJ065
VF65
Full Nipple, ISO-F
145
63.5
150
CFUJ080
VF80
Full Nipple, ISO-F
160
76.3
150
CFUJ100
VF100
Full Nipple, ISO-F
185
101.6
150
CUSTOMIZED SOLUTION
Specify your customized solution.
If you have your specification already at hand, please upload it and submit it to us. We are happy to send you a quote.
Upload your specification
Maximum upload size: 15 MB, only JPG, PNG, CAD, PDF files are acceptable.
