Half Nipple, ISO-K
Universal half nipple, ISO-K for vacuum systems. PRECESS provides various kinds of flange for pipeline connection of your system.
Home > Products > Half Nipple > Half Nipple, ISO-K

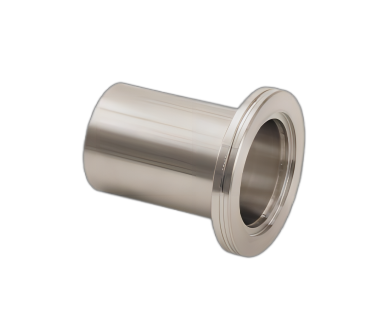

Half Nipple, ISO-K
We fabricate these ISO nipples (spools) for HV systems from 304L stainless steel tubing and ISO flanges. The ISO flange (also called Large ISO) is used for HV chamber ports and is available in two distinct styles; ISO-K which uses clamp fasteners and ISO-F which uses nut and bolt fasteners.
Key features of the Half Nipple, ISO-K
Features:
Low cost of ownership
Half nipples feature one ISO flange
Full nipples feature two ISO flanges
Benefits:
Conical and straight reducer nipples adapt two different flange sizes
Common lengths and tube diameters listed contact us with your specific requirements
TECHNICAL DATA
Downloads
SIZES
DN63 to 250mm
Flange
ISO-K
MATERIAL
SS / Aluminum
LEAK RATE
 < 1 × 10-9 mbar l/s
PRESSURE RANGE
1 × 10-9 mbar to 2 bar (abs)

Half Nipple, ISO-K
800.11KB PDF
Download
SPECIFY STANDARD PRODUCT
Get to the product details to specify your requirements to get a quote or to get a specific CAD data download.
Part No.
Size
Description
φA
φB
φC
T
t

BHAK063
ISO63-20L
Half Nipple, ISO-K
95
60.5
63.5
20
13
BHAK063F
ISO63[SCH]-20L
Half Nipple, ISO-K
95
70.3
76.3
20
13
CHAK063
ISO63-50L
Half Nipple, ISO-K
95
60.5
63.5
50
43
CHAK063F
ISO63[SCH]-50L
Half Nipple, ISO-K
95
70.3
76.3
50
43
BHAK080
ISO80-20L
Half Nipple, ISO-K
110
72.3
76.3
20
13
BHAK080F
ISO80[SCH]-20
Half Nipple, ISO-K
110
83.1
89.1
20
13
CHAK080
ISO80-50L
Half Nipple, ISO-K
110
72.3
76.3
50
43
CHAK080F
ISO80[SCH]-50L
Half Nipple, ISO-K
110
83.1
89.1
50
43
BHAK100
ISO100-20L
Half Nipple, ISO-K
130
97.6
101.6
20
13
BHAK100F
ISO100[SCH]-20L
Half Nipple, ISO-K
130
108.3
114.3
20
13
CHAK100
ISO100-50L
Half Nipple, ISO-K
130
97.6
101.6
50
43
CHAK100F
ISO100[SCH]-50L
Half Nipple, ISO-K
130
108.3
114.6
50
43
BHAK125
ISO125-20L
Half Nipple, ISO-K
155
123.4
127.4
20
13
BHAK125F
ISO125[SCH]-20L
Half Nipple, ISO-K
155
133
139.8
20
13
CHAK125
ISO125-50L
Half Nipple, ISO-K
155
123.4
127.4
50
43
CHAK125F
ISO125[SCH]-50L
Half Nipple, ISO-K
155
133
139.8
50
43
BHAK160
ISO160-20L
Half Nipple, ISO-K
180
148.4
152.4
20
13
BHAK160F
ISO160[SCH]-20L
Half Nipple, ISO-K
180
158.4
165.2
20
13
CHAK160
ISO160-50L
Half Nipple, ISO-K
180
148.4
152.4
50
43
CHAK160F
ISO160[SCH]-50L
Half Nipple, ISO-K
180
158.4
165.2
50
43
BHAK200
ISO200-20L
Half Nipple, ISO-K
240
208.3
216.3
20
13
BHAK200F
ISO200[SCH]-20L
Half Nipple, ISO-K
240
208.3
216.3
20
13
CHAK200
ISO200-50L
Half Nipple, ISO-K
240
208.3
216.3
50
43
CHAK200F
ISO200[SCH]-50L
Half Nipple, ISO-K
240
208.3
216.3
50
43
BHAK250
ISO250-20L
Half Nipple, ISO-K
290
259.4
267.4
20
13
BHAK250F
ISO250[SCH]-20L
Half Nipple, ISO-K
290
259.4
267.6
20
13
CHAK250
ISO250-50L
Half Nipple, ISO-K
290
259.4
267.4
50
43
CHAK250F
ISO250[SCH]-50L
Half Nipple, ISO-K
290
259.4
267.4
50
43
