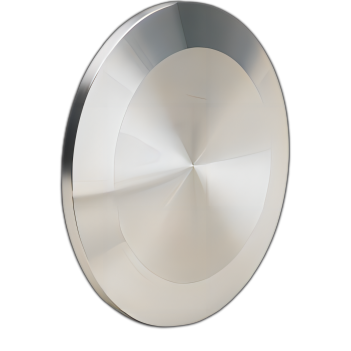

Blank Flange, KF

The key performance indicators for flange are reliability and variability. We fabricate these Blank Flange, KF for FV and HV systems. These flanges are used for mating ISO-KF flanges and include both the centering ring and O-ring. The ISO-KF (QF) flange is used for through- or fore line vacuum plumbing and for simple FV and HV chamber ports.

Key features of the Blank Flange, KF
Features:
Low cost of ownership
KF fittings are used for through or foreline vacuum plumbing and simple HV chamber
Elastomeric O-ring limits the connection's temperature range and ultimate vacuum
Benefits:
304L stainless steel fittings work in adverse temperatures and corrosive conditions
Aluminum or brass fittings work in more general applications
TECHNICAL DATA
Downloads
SIZES
DN16 to 160mm
Flange
 ISO-KF
MATERIAL
 SS / Aluminum
LEAK RATE
 < 1 × 10-9 mbar l/s
PRESSURE RANGE
1 × 10-9 mbar to 2 bar (abs)

Blank Flange, KF
603.37KB PDF
Download
SPECIFY STANDARD PRODUCT
Get to the product details to specify your requirements to get a quote or to get a specific CAD data download.
Part No.
Size
Description
φA
φB
C
T
Manual
Price
In

BBLN016
NW16
Blank Flange, KF
30
17.2
10.7
5
BBLN025
NW25
Blank Flange, KF
40
26.2
19.8
5
BBLN040
NW40
Blank Flange, KF
55
41.2
34.8
5
BBLN050
NW50
Blank Flange, KF
75
52.2
45.8
6
BBLN063
NW63
Blank Flange, KF
95
70.2
12
BBLN080
NW80
Blank Flange, KF
114
83.2
12
BBLN100
NW100
Blank Flange, KF
134
102.2
12
BBLN125
NW125
Blank Flange, KF
161
127.3
12
BBLN160
NW160
Blank Flange, KF
190
153.3
12
