Wing Nut Clamp
Universal wing nut clamp for vacuum systems. PRECESS provides various kinds of clamps for pipeline connection of your system.
Home > Products > Clamps > Wing Nut Clamp

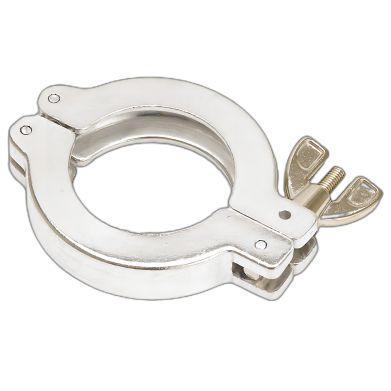

Wing Nut Clamp
The key performance indicators for clamp are reliability and variability. We fabricate these Wing Nut Clamp for FV and HV systems. These machined clamps and cast clamps are used (in conjunction with a centering ring with fitted O-ring) for mating KF flanges. The KF (QF) flange is used for through- or fore line vacuum plumbing and for simple FV and HV chamber ports.
Key features of the Wing Nut Clamp
Features:
Low cost of ownership
Hinged two-part device
Benefits:
Machined clamps available in stainless steel or aluminum
Cast clamps available in Aluminum 6061 T6 Large number of design options
TECHNICAL DATA
Downloads
SIZES
 DN16 to 50mm
Flange
 ISO-KF
MATERIAL
Aluminum or stainless steel

Wing Nut Clamp
315.78KB PDF
Download
SPECIFY STANDARD PRODUCT
Get to the product details to specify your requirements to get a quote or to get a specific CAD data download.
Part No.
Size
Description
φA
B
C
φD
Nut

ACLW016
NW16
ISO-KF Clamp
41.5
62.5
16
23
M5
ACLW025
NW25
ISO-KF Clamp
54
72
16
33.5
M5
ACLW040
NW40
ISO-KF Clamp
69.9
89.5
16
48
M5
ACLW050
NW50
ISO-KF Clamp
92.5
113
20
62
M6
CUSTOMIZED SOLUTION
Specify your customized solution.
If you have your specification already at hand, please upload it and submit it to us. We are happy to send you a quote.
Upload your specification
Maximum upload size: 15 MB, only JPG, PNG, CAD, PDF files are acceptable.
