Double Wall Clamp(SUS)
Universal double wall clamp(SUS) for vacuum systems. PRECESS provides various kinds of clamps for pipeline connection of your system.
Home > Products > Clamps > Double Wall Clamp(SUS)

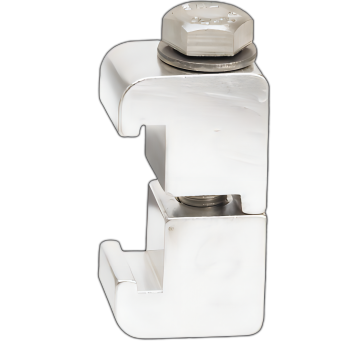

Double Wall Clamp(SUS)
The key performance indicators for clamp are reliability and variability. We fabricate these Double Wall Clamp(SUS) for FV and HV systems. These machined clamps and cast clamps are used (in conjunction with a centering ring with fitted O-ring) for mating ISO flanges. The ISO (QF) flange is used for through- or fore line vacuum plumbing and for simple FV and HV chamber ports.
Key features of the Double Wall Clamp(SUS)
Features:
Low cost of ownership
Hinged two-part device
Benefits:
Machined clamps available in stainless steel
TECHNICAL DATA
Downloads
SIZES
M8 to M12
Flange
 ISO-K, ISO-F
MATERIAL
Aluminum or stainless steel

Double Wall Clamp(SUS)
336.63KB PDF
Download
SPECIFY STANDARD PRODUCT
Get to the product details to specify your requirements to get a quote or to get a specific CAD data download.
Part No.
Size
Description
Manual
Price
Stock

ACLD10F
M10
ISO-K Clamp
CUSTOMIZED SOLUTION
Specify your customized solution.
If you have your specification already at hand, please upload it and submit it to us. We are happy to send you a quote.
Upload your specification
Maximum upload size: 15 MB, only JPG, PNG, CAD, PDF files are acceptable.
