Chain Clamp
Universal chain clamp for vacuum systems. PRECESS provides various kinds of clamps for pipeline connection of your system.
Home > Products > Clamps > Chain Clamp

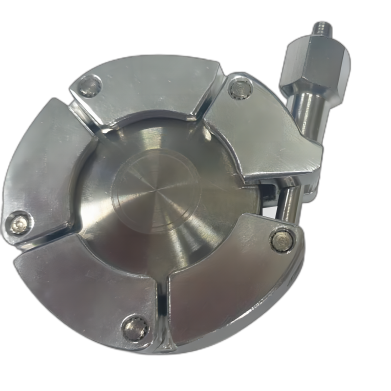

Chain Clamp
The key performance indicators for clamp are reliability and variability. We fabricate these Chain Clamp for FV and HV systems. These machined clamps and cast clamps are used (in conjunction with a centering ring with fitted O-ring) for mating KF flanges. The KF (QF) flange is used for through- or fore line vacuum plumbing and for simple FV and HV chamber ports.
Key features of the Chain Clamp
Features:
Low cost of ownership
Hinged two-part device
Benefits:
Machined clamps available in stainless steel or aluminum
Cast clamps available in Aluminum 6061 T6 Large number of design options
TECHNICAL DATA
Downloads
SIZES
DN63 to 160mm
Flange
ISO-KF
MATERIAL
Aluminum or stainless steel

Chain Clamp
336.63KB PDF
Download
SPECIFY STANDARD PRODUCT
Get to the product details to specify your requirements to get a quote or to get a specific CAD data download.
Part No.
Size
Description
φA
Manual
Price
In Stock

ACLC063
ISO63
ISO-KF Clamp
140
ACLC080
ISO80
ISO-KF Clamp
158
ACLC100
ISO100
ISO-KF Clamp
180
ACLC160
ISO160
ISO-KF Clamp
234
CUSTOMIZED SOLUTION
Specify your customized solution.
If you have your specification already at hand, please upload it and submit it to us. We are happy to send you a quote.
Upload your specification
Maximum upload size: 15 MB, only JPG, PNG, CAD, PDF files are acceptable.
