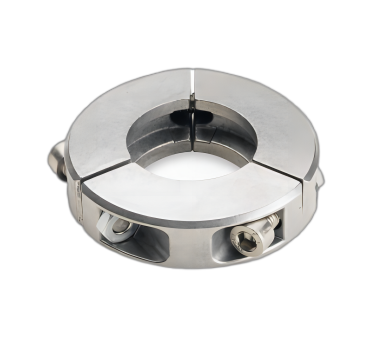

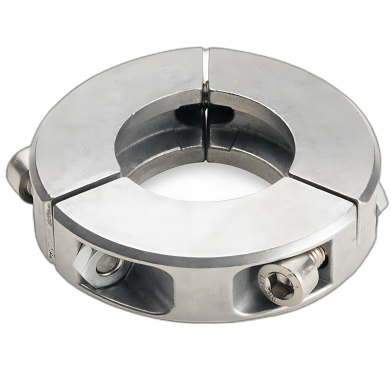

Bulk Head Clamp
The key performance indicators for clamp are reliability and variability. We fabricate these Bulkhead Clamp for FV and HV systems. These machined clamps and cast clamps are used (in conjunction with a centering ring with fitted O-ring) for mating KF flanges. The KF (QF) flange is used for through- or fore line vacuum plumbing and for simple FV and HV chamber ports.
Key features of the Bulk Head Clamp
Features:
Low cost of ownership
Hinged two-part device
Benefits:
Machined clamps available in stainless steel or aluminum
Cast clamps available in Aluminum 6061 T6 Large number of design options
TECHNICAL DATA
Downloads
SIZES
 DN16 to 50mm
Flange
ISO-KF
MATERIAL
 Aluminum or stainless steel

Bulkhead Clamp
336.63KB PDF
Download
SPECIFY STANDARD PRODUCT
Get to the product details to specify your requirements to get a quote or to get a specific CAD data download.
Part No.
Size
Description
φA
φB
C
φD
E
F
N

ACLB16
NW16
ISO-KF Clamp
51
22
9
38
60
30
6
ACLB25
NW25
ISO-KF Clamp
60
32
10
48
60
30
6
ACLB40
NW40
ISO-KF Clamp
75
47
9.4
62
60
30
6
ACLB50
NW50
ISO-KF Clamp
95
67
10.2
83
45
22.5
8
