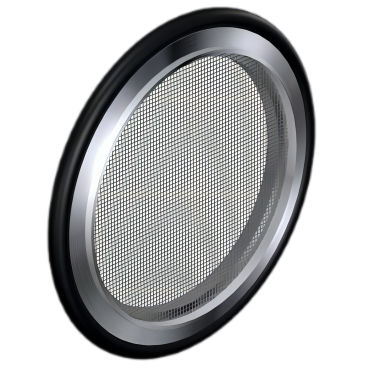

The key performance indicators forcenter ring are reliability and variability. We fabricate these Center Ring, Mesh 10# for FV and HV systems. These centering rings are used for mating ISO flanges and include both the centering ring and O-ring. The ISO flange (also called Large ISO) is used for FV and HV chamber ports and is available in three distinct styles: ISO-KF, ISO-K which uses clamp fasteners and ISO-F which uses nut and bolt fasteners.
|
SIZES |
DN16 to 320mm |
|
Flange |
ISO-KF, ISO-K, ISO-F |
|
MATERIAL |
SS / Aluminum |
|
LEAK RATE |
< 1 × 10-9 mbar l/s |
|
PRESSURE RANGE |
1 × 10-9 mbar to 2 bar (abs) |
