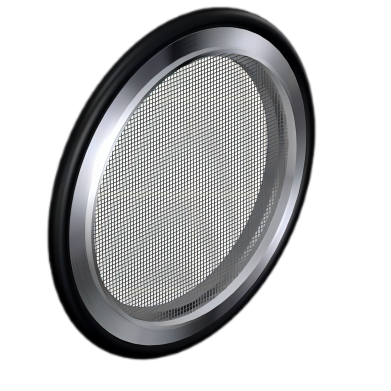

Center Ring, Mesh 60#
The key performance indicators for center ring are reliability and variability. We fabricate these Center Ring, Mesh 60# for FV and HV systems. These centering rings are used for mating ISO flanges and include both the centering ring and O-ring. The ISO flange (also called Large ISO) is used for FV and HV chamber ports and is available in three distinct styles: ISO-KF, ISO-K which uses clamp fasteners and ISO-F which uses nut and bolt fasteners.
Key features of the Center Ring, Mesh 60#
Features:
Low cost of ownership
These centering rings are composed of a stainless steel ring paired with a fluorocarbon O-ring offering high chemical resistance and durability for various operating conditions
Benefits:
The rings are equipped with a 72# mesh screen which serves as an effective debris filter when installed at the inlet of mechanical pumps safeguarding the system by preventing the passage of loose debris through the orifice
Large number of design options
TECHNICAL DATA
Downloads
SIZES
 DN16 to 320mm
Flange
 ISO-KF, ISO-K, ISO-F
MATERIAL
 SS / Aluminum
LEAK RATE
 < 1 × 10-9 mbar l/s
PRESSURE RANGE
1 × 10-9 mbar to 2 bar (abs)

Center Ring, Mesh 60#
441.79KB PDF
Download
SPECIFY STANDARD PRODUCT
Get to the product details to specify your requirements to get a quote or to get a specific CAD data download.
Part No.
Size
Description
φA
φB
C
D
Manual
Price
In

ACRM016T
NW16
SS / Aluminum Centering Ring
17
15
3.8
8
ACRM025T
NW25
SS / Aluminum Centering Ring
26
23.5
3.8
8
ACRM040T
NW40
SS / Aluminum Centering Ring
41
38.5
3.8
8
ACRM050T
NW50
SS / Aluminum Centering Ring
52
50
3.8
8
ACRM063T
ISO63
SS / Aluminum Centering Ring
69.9
68
3.8
8
ACRM080T
ISO80
SS / Aluminum Centering Ring
82.8
81.2
4
8
ACRM100
ISO100
SS / Aluminum Centering Ring
101.7
99.7
3.9
8
ACRM125
ISO125
SS / Aluminum Centering Ring
126.9
123
3.9
8
ACRM160
ISO160
SS / Aluminum Centering Ring
152.5
150
3.9
8
ACRM200
ISO200
SS / Aluminum Centering Ring
212.5
210
3.9
8
ACRM250
ISO250
SS / Aluminum Centering Ring
261
258
3.9
8
ACRM320
ISO320
SS / Aluminum Centering Ring
316
311
5
13
