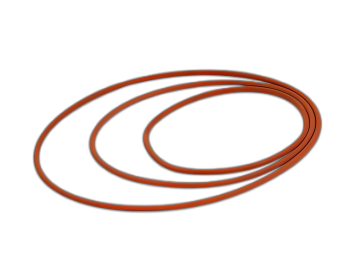

O-Ring, EPDM
The key performance indicators for O-ring are reliability and variability. We fabricate these O-Ring, EPDM for FV and HV systems. These centering rings are used for mating ISO flanges and include both the centering ring and O-ring. The ISO flange (also called Large ISO) is used for FV and HV chamber ports and is available in three distinct styles: ISO-KF, ISO-K which uses clamp fasteners and ISO-F which uses nut and bolt fasteners.
Key features of the O-Ring, EPDM
Features:
Low cost of ownership
Available with either Fluorocarbon Buna-N and Neoprene O-rings
Benefits:
Large number of design options
TECHNICAL DATA
Downloads
SIZES
DN16 to 320mm
Flange
ISO-KF, ISO-K, ISO-F
MATERIAL
EPDM
LEAK RATE
< 1 × 10-9 mbar l/s
PRESSURE RANGE
1 × 10-9 mbar to 2 bar (abs)

O-Ring, EPDM
685.37KB PDF
Download
SPECIFY STANDARD PRODUCT
Get to the product details to specify your requirements to get a quote or to get a specific CAD data download.
Part No.
Size
Description
I.D
T
ORING-NO.
D
Manual
Price
In

ACRE016
NW16
O-ring Seals
18.42±0.15
5.33±0.12
AS314
ACRE025
NW25
O-ring Seals
27.94±0.15
5.33±0.12
AS320
ACRE040
NW40
O-ring Seals
40.64±0.25
5.33±0.12
AS326
ACRE050
NW50
O-ring Seals
53.34±0.25
5.33±0.12
AS330
ACRE063
ISO63
O-ring Seals
72.39±0.38
5.33±0.12
AS336
ACRE080
ISO80
O-ring Seals
88.25±0.38
5.33±0.12
AS341
ACRE100
ISO100
O-ring Seals
107.32±0.38
5.33±0.12
AS347
ACRE125
ISO125
O-ring Seals
135.89±0.58
5.33±0.12
AS356
ACRE160
ISO160
O-ring Seals
158.12±0.58
5.33±0.12
AS362
ACRE200
ISO200
O-ring Seals
215.26±0.76
5.33±0.12
AS371
ACRE250
ISO250
O-ring Seals
266.07±0.76
5.33±0.12
AS378
ACRE320
ISO320
O-ring Seals
316.86±0.76
6.98±0.15
AS454
CUSTOMIZED SOLUTION
Specify your customized solution.
If you have your specification already at hand, please upload it and submit it to us. We are happy to send you a quote.
Upload your specification
Maximum upload size: 15 MB, only JPG, PNG, CAD, PDF files are acceptable.
