Center Ring, Orifice
Universal center ring, orifice for vacuum systems. PRECESS provides various kinds of center ring for pipeline connection of your system.
Home > Products > Center Rings > Center Ring, Orifice

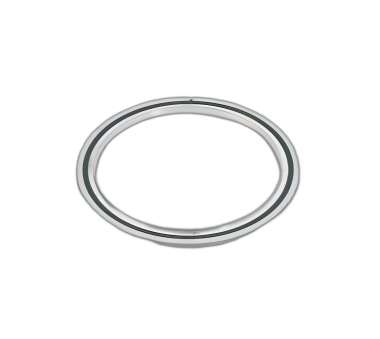

Center Ring, Orifice
The key performance indicators for center ring are reliability and variability. We fabricate these Center Ring, Orifice for FV and HV systems. These centering rings are used for mating ISO flanges and include both the centering ring and O-ring. The ISO flange (also called Large ISO) is used for FV and HV chamber ports and is available in three distinct styles: ISO-KF, ISO-K which uses clamp fasteners and ISO-F which uses nut and bolt fasteners.
Key features of the Center Ring, Orifice
Features:
Low cost of ownership
Rings available in stainless steel inner/aluminum outer combination or aluminum
Benefits:
Available with either Fluorocarbon Buna-N and Neoprene O-rings
Large number of design options
TECHNICAL DATA
Downloads
SIZES
 DN16 to 50mm
Flange
ISO-KF, ISO-K, ISO-F
MATERIAL
SS / Aluminum
LEAK RATE
 < 1 × 10-9 mbar l/s
PRESSURE RANGE
1 × 10-9 mbar to 2 bar (abs)

Center Ring, Orifice
685.37KB PDF
Download
SPECIFY STANDARD PRODUCT
Get to the product details to specify your requirements to get a quote or to get a specific CAD data download.
Part No.
Size
Description
φA
φB
C
D
Manual
Price
In

ACRN016F
NW16-φ5
SS / Aluminum Centering Ring
17
5
3.8
8
ACRN025F
NW25-φ5
SS / Aluminum Centering Ring
26
5
3.8
8
ACRN040F
NW40-φ5
SS / Aluminum Centering Ring
41
5
3.8
8
ACRN050F
NW50-φ5
SS / Aluminum Centering Ring
52
5
3.8
8
ACRN025
NW25-φ15
SS / Aluminum Centering Ring
26
15
3.8
8
ACRN040
NW40-φ15
SS / Aluminum Centering Ring
41
15
3.8
8
ACRN050
NW50-φ15
SS / Aluminum Centering Ring
52
15
3.8
8
ACRN040S
NW40-φ25
SS / Aluminum Centering Ring
41
25
3.8
8
ACRN050S
NW50-φ25
SS / Aluminum Centering Ring
52
25
3.8
8
CUSTOMIZED SOLUTION
Specify your customized solution.
If you have your specification already at hand, please upload it and submit it to us. We are happy to send you a quote.
Upload your specification
Maximum upload size: 15 MB, only JPG, PNG, CAD, PDF files are acceptable.
