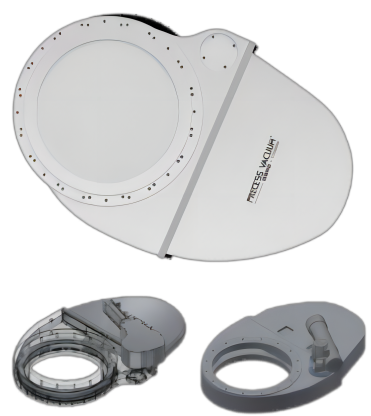

The V80 HV Pendulum Isolation Valve provides reliable isolation performance combined with low particle count and low particle activation. The excellent particle performance is achieved by an exceptionally smooth opening and closing motion.

It is ideal for isolation requirements in harsh processes such as in evaporator and sputter applications. The V80 valve provides a 3-position pneumatic, single acting with closing spring or a standard pneumatic, single acting with closing spring.

With its special split body design, it allows maintenance without any disassembly of pipe connections or process chamber connections. Its slim design allows to mount the V80 directly to a process chamber, eliminating e.g. the volume normally required in a chamber - valve - pump connection.

Already installed in hundreds of batches and inline production systems around the world under various process conditions, the V80 series has proven its outstanding performance in all aspects.

The V80 HV Pendulum Isolation Valve is available in aluminum, the body hard anodized or nickel-plated with standard flange connectors in ISO-F, ASA-LP and JIS. Customer-specific flanges can be integrated. Further options are ports for roughing (by-pass), venting or for gauges, heating solution as well as a window in the plate with borosilicate or sapphire glass.
