Rectangular Bellows
Universal welded metal bellow for pumping systems. PRECESS provides various kinds of rectangular bellows for your system.
Home > Products > Weld Metal Bellows > Rectangular Bellows

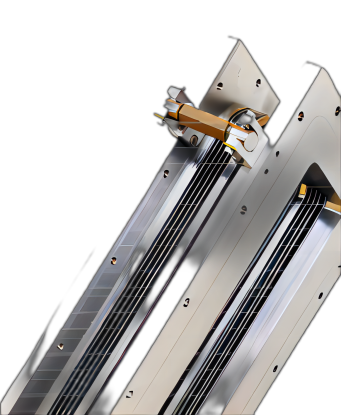

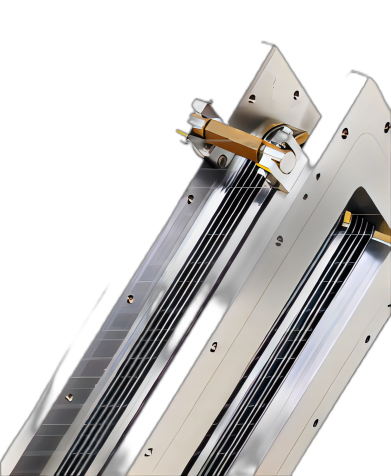

Rectangular Bellows
The key performance indicators for bellow are reliability and variability. We fabricate these Rectangular Bellows for FV, HV, UHV and XHV systems from 347 stainless steel hoses and 304L stainless steel. Rectangular bellows are flexible and tend to spring back to their natural length (typically midway between their extended and compressed lengths) when not under vacuum. All kinds of flange are the most widely used for FV, HV, UHV and XHV applications. Many gauges, instruments, accessories and feedthroughs are available on this flange system.
Key features of the Rectangular Bellows
Features:
Low cost of ownership
Flexible hoses can withstand many flexing cycles before cracking
All kinds of flange
Benefits:
The maximum bakeout temperature for the Stainless Steel Bellows is 250°C
Large number of design options
TECHNICAL DATA
Downloads
SIZES
 DN16 to 320mm
Flange
 All kinds of flange
MATERIAL
 Stainless Steel
LEAK RATE
 < 1 × 10-9 mbar l/s
PRESSURE RANGE
 1 × 10-9 mbar to 2 bar (abs)

Rectangular Bellows
1.86MB PDF
Download
SPECIFY STANDARD PRODUCT
Get to the product details to specify your requirements to get a quote or to get a specific CAD data download.

CUSTOMIZED SOLUTION
Specify your customized solution.
If you have your specification already at hand, please upload it and submit it to us. We are happy to send you a quote.
Upload your specification
Maximum upload size: 15 MB, only JPG, PNG, CAD, PDF files are acceptable.
