Welded Metal Bellows
Universal welded metal bellow for pumping systems. PRECESS provides various kinds of welded bellow for your system.
Home > Products > Weld Metal Bellows > Welded Metal Bellows

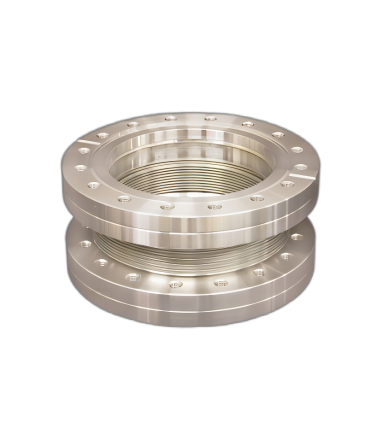

Welded Metal Bellows
The key performance indicators for bellow are reliability and variability. We fabricate these Welded Metal Bellows for FV, HV, UHV and XHV systems from 347 stainless steel hoses and 304L stainless steel. In contrast to hydraulically formed metal hoses, welded bellows are very flexible and tend to spring back to their natural length (typically midway between their extended and compressed lengths) when not under vacuum. The ISO-KF, ISO-K, ISO-F, and CF flange is the most widely used for FV, HV, UHV and XHV applications. Many gauges, instruments, accessories and feedthroughs are available on this flange system.Many gauges, instruments, accessories and feedthroughs are available on this flange system.

Key features of the Welded Metal Bellows
Features:
Low cost of ownership
Very flexible
Spring-back to their natural length when not under vacuum
Benefits:
The maximum bakeout temperature for the Stainless Steel Bellows is 250°C
Large number of design options
TECHNICAL DATA
Downloads
SIZES
 DN16 to 320mm
Flange
 ISO-KF, ISO-K, ISO-F, CF
MATERIAL
 Stainless Steel
LEAK RATE
 < 1 × 10-9 mbar l/s
PRESSURE RANGE
 1 × 10-9 mbar to 2 bar (abs)


Welded Metal Bellows
3.86MB PDF
Download
SPECIFY STANDARD PRODUCT
Get to the product details to specify your requirements to get a quote or to get a specific CAD data download.

CUSTOMIZED SOLUTION
Specify your customized solution.
If you have your specification already at hand, please upload it and submit it to us. We are happy to send you a quote.
Upload your specification
Maximum upload size: 15 MB, only JPG, PNG, CAD, PDF files are acceptable.
