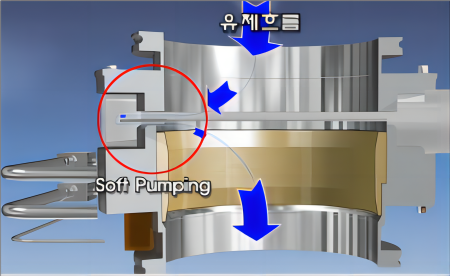

The V60 HV Gate Valve series is equipped with VATLOCK technology which is specially developed to provide reliable sealing without any friction at the gate seal. The VATLOCK mechanism also prevents valve failures thanks to the mechanical lock-in at the closed end position.

Already installed in handreds of demanding applications under various process conditions, the V60 series and its predecessor the V60 have proven their outstanding reliability. They have become the standard for any HV isolation requirement in sizes from DN 63-320 mm.

With its robust design the V60series meets all of the requirements for a reliable functioning HV gate valve. Designed to reliably perform for an especially high number of process cycles, the V60 sets the standard for general purpose HV gate valves.

The series provides various actuation and flange connection design options so it’s easily integrated into any HV system. A wide range of special options such as windows and ports ensure optimal fit to the application.

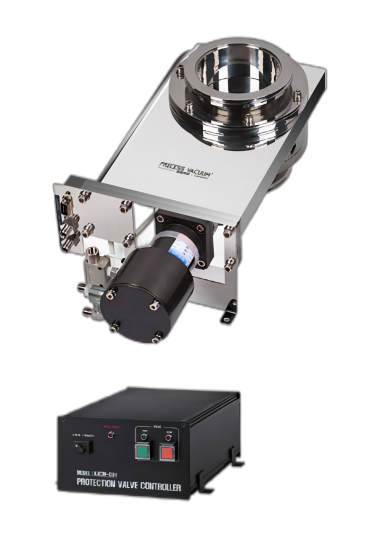

The V60 HV Gate Valve is available in pneumatic drive. The valve can be controlled by a controller which makes valve can be closed within 0.3s or set value. The solenoid valve’s standard voltage is 24V DC but other voltages are available upon request.  The valve position is indicated with a double position indicator - two switches each for the “Open” and “Closed” positions - with change-over contact.

The standard options for flange connectors are ISO-F, CF-F, ASA-L and JIS. Customer specific flanges with and without water-cooling can be integrated.
