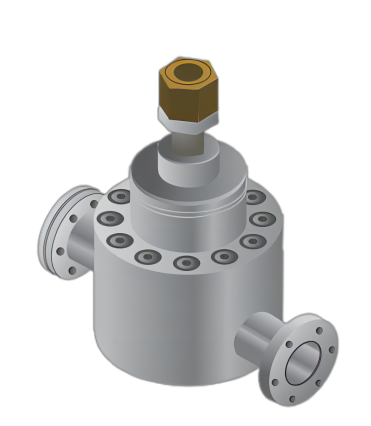

The VYAA All-Metal Angle Valve is equipped with Metal-Sealing, a “hard on hard” sealing technology. This dynamic, all-metal sealing system is characterized by consistent sealing and constant closing forces. It enables high sealing forces with comparable low axial forces. The sealing partners are made from stainless steel, and they are deformed elastically only. The Metal-Sealing is easily exchangeable on side. It may be baked to 300 °C in open and close position and is capable of a lifetime of over 1000 cycles when operated under clean conditions.

Already installed in thousands of demanding applications under various process conditions, the VYAA series has proven its outstanding reliability. It has become the standard solution for vacuum isolation in UHV and XHV applications.

No torque wrench is required as the valve is easy to operate with a standard hexagon wrench. With its robust design and a high conductance the valve is suitable for many different vacuum applications.

A key feature of the VYAA series is that the Metal-Sealing all-metal seal is easy to replace when the seal has worn out. While “hard-on-hard” all-metal seals often require re-machining of the valve seat, the VYAA valve series is designed so that the replacement Metal-Sealing seals in a new area of the valve seat rather than in the same position as the former ring seal. The Metal-Sealing can be replaced twice due to its three-level sealing seat.

The standard flange is CF-R fixed in place.
