The VLAS VLBS-G HV Angle Valve series delivers key performance indicators reliability and variability both. Tested in thousands of demanding applications under various process conditions the VLAS VLBS-G series has proven its outstanding reliability and variability.

With its design options in actuation from manual to pneumatic to electric, various flange connections, body materials and sealing materials, nearly every requirement can be met.

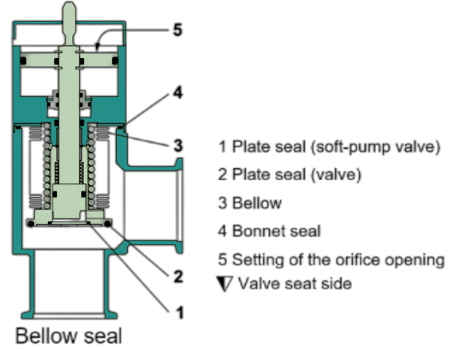

The VLAS VLBS-G is ideal for the pumping and venting of HV systems when a low outgassing rate is important. It resists high differential pressure and is fitted with a bellows-encapsulated feedthrough for particle-sensitive applications. The bellows encapsulation also prevents pressure peaks in any valve position.

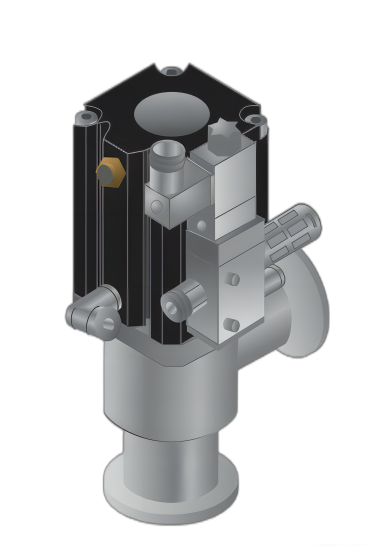

Based on a reliable and robust core design, the VLAS VLBS-G HV Angle Valve offers different actuation options. The manual version is controlled by a removable hand wheel that provides good grip and precise control with a clear end stop position, avoiding the risk of over twisting. The pneumatic version can be configured as single acting with closing spring (NC), opening spring (NO) or double acting.
