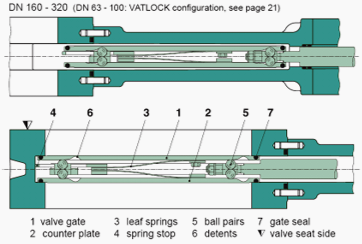

The SPAV Gate Valve is equipped with VATLOCK technology, specially developed to provide reliable sealing without any friction, which avoids the generation of particles.

Already installed in handers of demanding applications under various process conditions, the SPAV series has proven its outstanding reliability. It has become the standard solution for vacuum isolation in pressure ranges up to < 10-7 mbar, e. g. in connection with turbo molecular pumps.

With a robust design and direct mounting option, as well as reduced and easy maintenance due to its split body, the SPAV series easily meets all standard requirements.

Various design options in actuation, flange connections or additional vacuum ports make it easy to integrate in any vacuum application.

A key feature of the SPAV series is that it is locked in closing position, eliminating any risk of vacuum loss due to pneumatic failure.

SPAV Gate Valves are available as manual and pneumatic versions with solenoid valve, either as an onboard solution or for external mounting. Solenoid valve standard voltage is 24 VDC, with other voltages available on request. The valve position is indicated by mechanical or electrical position indicators.

Standard options for flange connectors are ISO-F and JIS. Customer-specific flanges can be integrated, as well as special features, e. g. a shutter for laser applications (as gate without seal).

The standard gate sealing is provided by an O-ring seal in FKM and other sealing materials are available on request.
