PSBV Series Control Butterfly Valve
Series AB-N Control Butterfly Valve
Fast, Precise Downstream Pressure Control
Home > Products > Vacuum Control Valves > PSBV Series Control Butterfly Valve

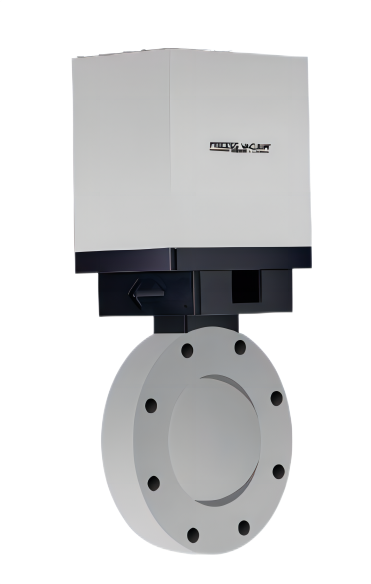

PSBV Series Control Butterfly Valve

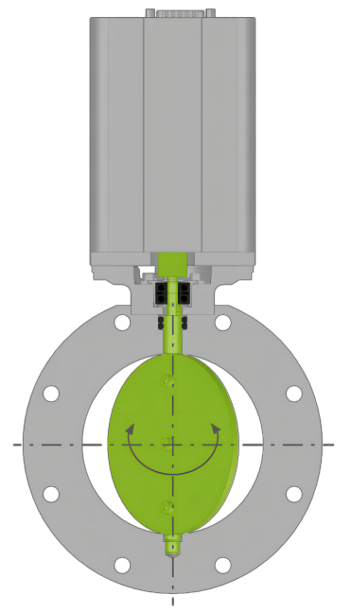

The AB-N Control Butterfly Valve provides pressure control performance. With its fast and precise acting motion controller (0.1s), it’s the perfect solution for pressure control in all kinds of processes such as PVD, CVD, Etch and ALD etc. The plate acts as a throttling element and varies the conductance of the valve opening. The integrated pressure controller of the AB-N calculates the required plate position to achieve the set pressure as fast as possible.

It is especially designed for harsh downstream processes with particle in the gas stream. The AB-N stays fully operational despite high particle loads and debris accumulation by design.

AB-N series installed in hundreds of demanding applications already under various process conditions, the AB-N series has proven its outstanding reliability. With a robust design and direct mounting option, as well as reduced and easy maintenance, the AB-N series convinces in all aspects.


Various design options in body material, surface treatment, elastomers, flange connections, special sizes as well as special control algorithms (adaptive, fix PI down-stream/soft-pump) simplify the integration into various vacuum applications.


AB-N Control Butterfly Valves is available in aluminum or stainless steel, with standard flange connectors in ISO-KF and ISO-F. Customer-specific flanges can be integrated as well as special features like an integrated heater with insulation. Various FFKM/FKM elastomers are available on request (FKM is standard).

Key features of the PSBV Series Control Butterfly Valve
Features:
Excellent pressure control
Very fast operation
On-board software for local operation
Benefits:
Reliable operation in harsh process conditions
Low-cost ownership
TECHNICAL DATA
Downloads

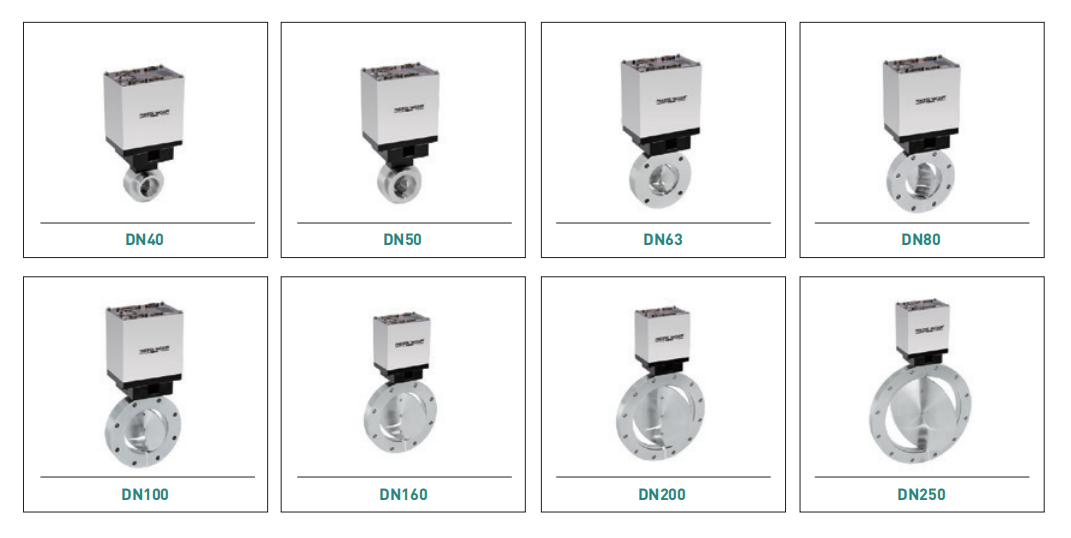

SIZES
DN25-320
ACTUATOR
ntegrated controller with Stepper Motor
BODY MATERIAL
Aluminum or Stainless Steel
METRIC FLANGES
ISO-KF, ISO-F
LEAK RATE VALVE BODY
< 1 × 10-9 mbar l/s
PRESSURE RANGE
1 × 10-8 mbar to 1.2 bar (abs)
CYCLES UNTIL FIRST SERVICE
 Pressure Control
 2 million
TEMPERATURE
 Valve Body
 ≤ 150 °C
MATERIAL
 Valve Body, Plate
 Aluminum or Stainless Steel
Shaft
 Stainless Steel
SEAL
 Feedthrough
 FKM (others on request)
FEEDTHROUGH
Rotating shaft, direct driven
MOUNTING POSITION
Any (shaft on pump side recommended)
DN 25     ···     DN 320

MAX. DIFFERENTIAL PRESSURE
 On the plate
 1000 mbar ···    75 mbar
CONDUCTANCE
 Molecular flow
 22 l/s      ···    27000 l/s
MIN. CONTROLLABLE CONDUCTANCE Aluminum
 Stainless steel
0.15 l/s    ···    6 l/s
CLOSING OR OPENING TIME

0.09 s     ···    0.29 s
Series AB-N Control Butterfly Valve
4.14MB PDF
Download
SPECIFY STANDARD PRODUCT
Get to the product details to specify your requirements to get a quote or to get a specific CAD data download.
Flange
Flange
Communication
Port
Part Number
Price

DN25
ISO-KF
RS232
1
AB-N-025-K-N-R3-S-1
DN40
ISO-KF
RS485
1
AB-N-040-K- N -R4-S-1
DN50
ISO-KF
Logic
1
AB-N-050-K- N -LO-S-1
DN63
DeviceNET
1
AB-N-063-F- N -DN-S-1
DN80
Profibus
1
AB-N-080-F- N -PB-S-1
DN100
EtherNET
1
AB-N-100-F- N -EN-S-1
DN160
EtherCAT
1
AB-N-160-F- N -EC-S-1
DN200
CC-Link
1
AB-N-200-F- N -CC-S-1
DN250
RS232
2
AB-N-250-F- N -R3-S-2
DN320
RS485
AB-N-320-F- N -R4-S-2
CUSTOMIZED SOLUTION
Specify your customized solution.
If you have your specification already at hand, please upload it and submit it to us. We are happy to send you a quote.
Upload your specification
Maximum upload size: 15 MB, only JPG, PNG, CAD, PDF files are acceptable.
